Texas Instruments
SN74LVC1G99YZPR
Multi-Function Logic Gate, 3-State Output, Schmitt Trigger Input, CMOS
CMOS multi-function logic IC featuring Schmitt trigger inputs and 3-state outputs. Supports a wide supply voltage range from 1.65V to 5.5V with a maximum operating temperature of 125°C. Delivers 32mA of output current at both high and low levels, with a propagation delay of 8.6ns. This surface-mount component is RoHS compliant and packaged on tape and reel.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1G99YZPR technical specifications.
General
| High Level Output Current | -32mA |
| Input Type | SCHMITT TRIGGER |
| Lead Free | Lead Free |
| Logic Function | Multi Function |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Gates | 1 |
| Number of Input Lines | 2 |
| Number of Inputs | 4 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Output Current | 32mA |
| Output Type | 3-STATE |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Propagation Delay | 8.6ns |
| Quiescent Current | 10uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Schmitt Trigger Input | Yes |
| Series | 74LVC |
| Technology | CMOS |
| Weight | 8.1E-05oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVC1G99YZPR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1G99YZPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

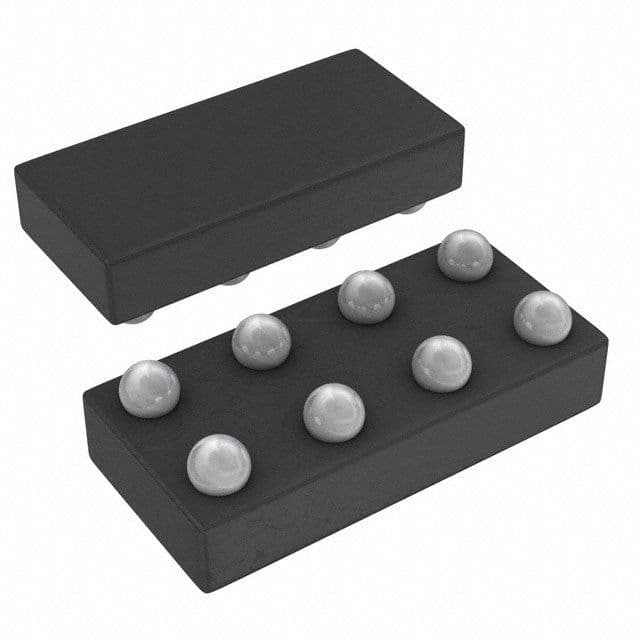

Product Images
