Single CMOS inverter, part of the 74LVC series, operates from a 1.65-V to 5.5-V supply. Features include a 3ns propagation delay and 5ns turn-on delay time. This surface mount component offers a high level output current of -32mA and a low level output current of 32mA. Operating temperature range is -40°C to 125°C, with a quiescent current of 10uA. The device is lead-free and RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC1GU04YZPR technical specifications.
General
| High Level Output Current | -32mA |
| Lead Free | Lead Free |
| Logic Function | Inverter |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Gates | 1 |
| Number of Inputs | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Propagation Delay | 3ns |
| Quiescent Current | 10uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74LVC |
| Technology | CMOS |
| Turn-On Delay Time | 5ns |
| Weight | 5.6E-05oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVC1GU04YZPR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC1GU04YZPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

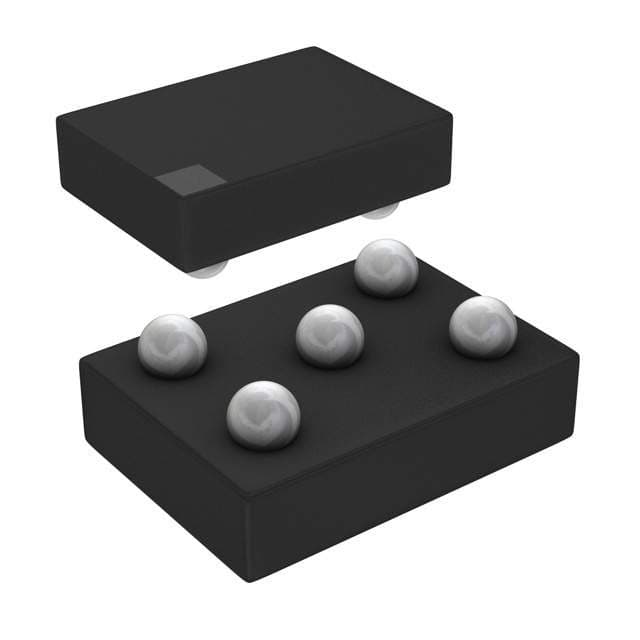

Product Images
