Octal bus transceiver featuring 8 bidirectional, 3-state outputs. This CMOS logic IC operates with a supply voltage range of 1.65V to 3.6V and offers a high level output current of 24mA and low level output current of 24mA. Designed for surface mounting in a 20-TVSOP package, it boasts a propagation delay of 6.5ns and a wide operating temperature range from -40°C to 125°C. The device is lead-free, RoHS compliant, and packaged on tape and reel.
PackageTFSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC245ADGVR technical specifications.
General
Package/Case
TFSOP
Direction
Bidirectional
High Level Output Current
24mA
Lead Free
Lead Free
Logic Function
Transceiver, Inverting
Low Level Output Current
24mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
8
Number of Bits per Element
8
Number of Channels
8
Number of Circuits
8
Number of Elements
1
Number of Outputs
8
Output Type
3-STATE
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
6.5ns
Radiation Hardening
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Turn-On Delay Time
17ns
Weight
0.002123oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC245ADGVR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC245ADGVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

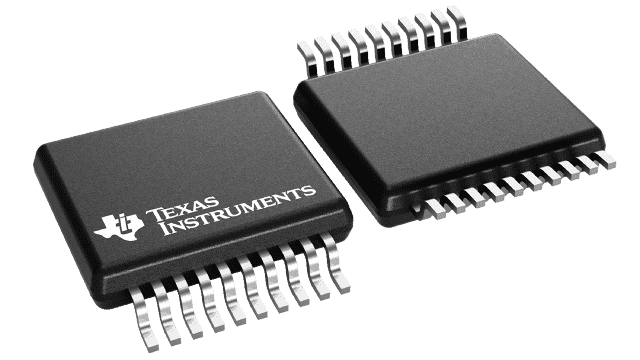

Product Images
