MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC2G00YEAR technical specifications.
General
High Level Output Current
32mA
Lead Free
Contains Lead
Logic Function
NAND GATE
Low Level Output Current
32mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Circuits
2
Number of Gates
2
Number of Inputs
2
Package Quantity
1
Packaging
Cut Tape
Propagation Delay
3.3ns
Quiescent Current
10uA
RoHS Compliant
No
Series
74LVC
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments SN74LVC2G00YEAR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC2G00YEAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

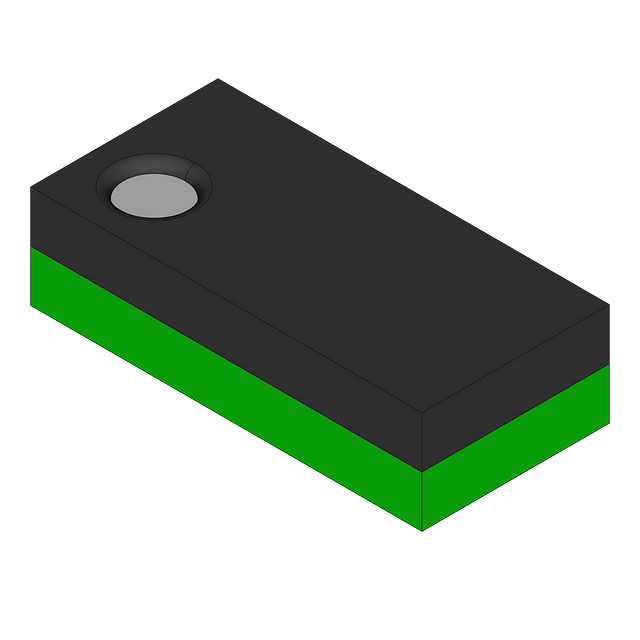

Product Images
