Texas Instruments
SN74LVC2G00YZAR
LVC/LCX/Z SERIES, DUAL 2-INPUT NAND GATE, BGA8, GREEN, MO-211EB, DSBGA-8
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC2G00YZAR technical specifications.
General
| High Level Output Current | 32mA |
| Lead Free | Lead Free |
| Logic Function | NAND GATE |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Gates | 2 |
| Number of Inputs | 2 |
| Number of Outputs | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Propagation Delay | 3.3ns |
| Quiescent Current | 10uA |
| RoHS Compliant | Yes |
| Series | 74LVC |
| Technology | CMOS |
| Turn-On Delay Time | 3.3ns |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVC2G00YZAR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC2G00YZAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

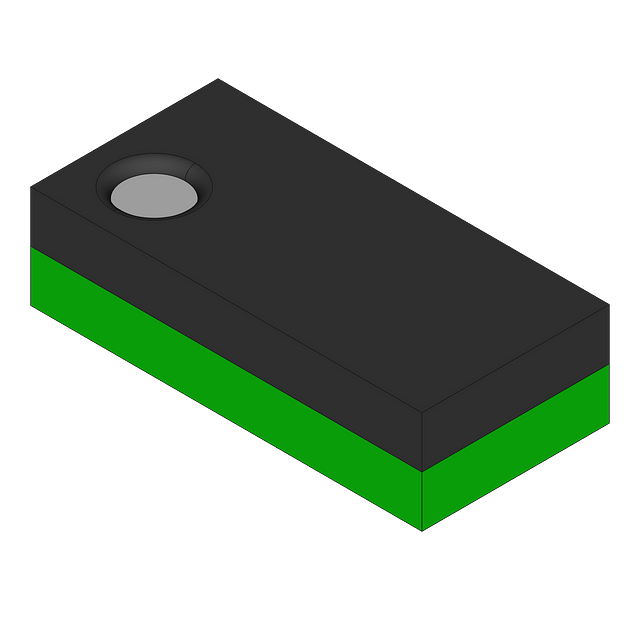

Product Images
