Dual 2-input NAND gate IC, operating from 1.65V to 5.5V supply. Features 3.3ns propagation delay and 4.3ns turn-on delay. Supports 32mA high and low level output current. Packaged in an 8-DSBGA surface mount configuration, this RoHS compliant component operates across a -40°C to 125°C temperature range.
PackageBGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC2G00YZPR technical specifications.
General
Package/Case
BGA
High Level Output Current
32mA
Lead Free
Lead Free
Logic Function
NAND GATE
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
2
Number of Circuits
2
Number of Gates
2
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
1
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
3.3ns
Quiescent Current
10uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
74LVC
Turn-On Delay Time
4.3ns
Weight
8.1E-05oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC2G00YZPR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC2G00YZPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

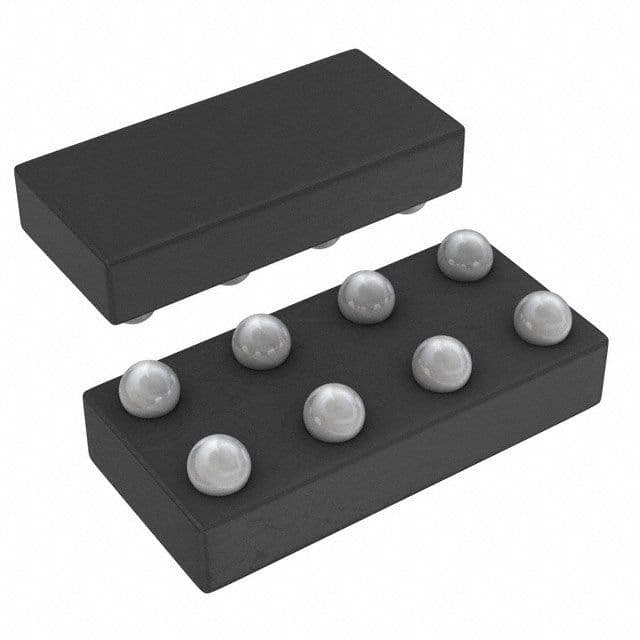

Product Images
