Dual 2-input positive-NOR gate IC featuring CMOS technology. Operates with a supply voltage range of 1.65V to 5.5V, offering a propagation delay of 4.4ns. Supports high-level output current of -32mA and low-level output current of 32mA. Encased in an 8-pin SSOP package for surface mounting, with dimensions of 2.95mm length, 2.8mm width, and 1.29mm height. Suitable for operation across a wide temperature range of -40°C to 125°C.
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC2G02DCTRG4 technical specifications.
General
Package/Case
SSOP
Height
1.29mm
High Level Output Current
-32mA
Lead Free
Lead Free
Length
2.95mm
Logic Function
NOR GATE
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
2
Number of Circuits
2
Number of Elements
2
Number of Gates
2
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
1
Number of Outputs
1
Package Quantity
3000
Packaging
Tape and Reel
Propagation Delay
4.4ns
Quiescent Current
10uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Turn-On Delay Time
4.4ns
Weight
0.000825oz
Width
2.8mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC2G02DCTRG4 Datasheet
Download the complete datasheet for Texas Instruments SN74LVC2G02DCTRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

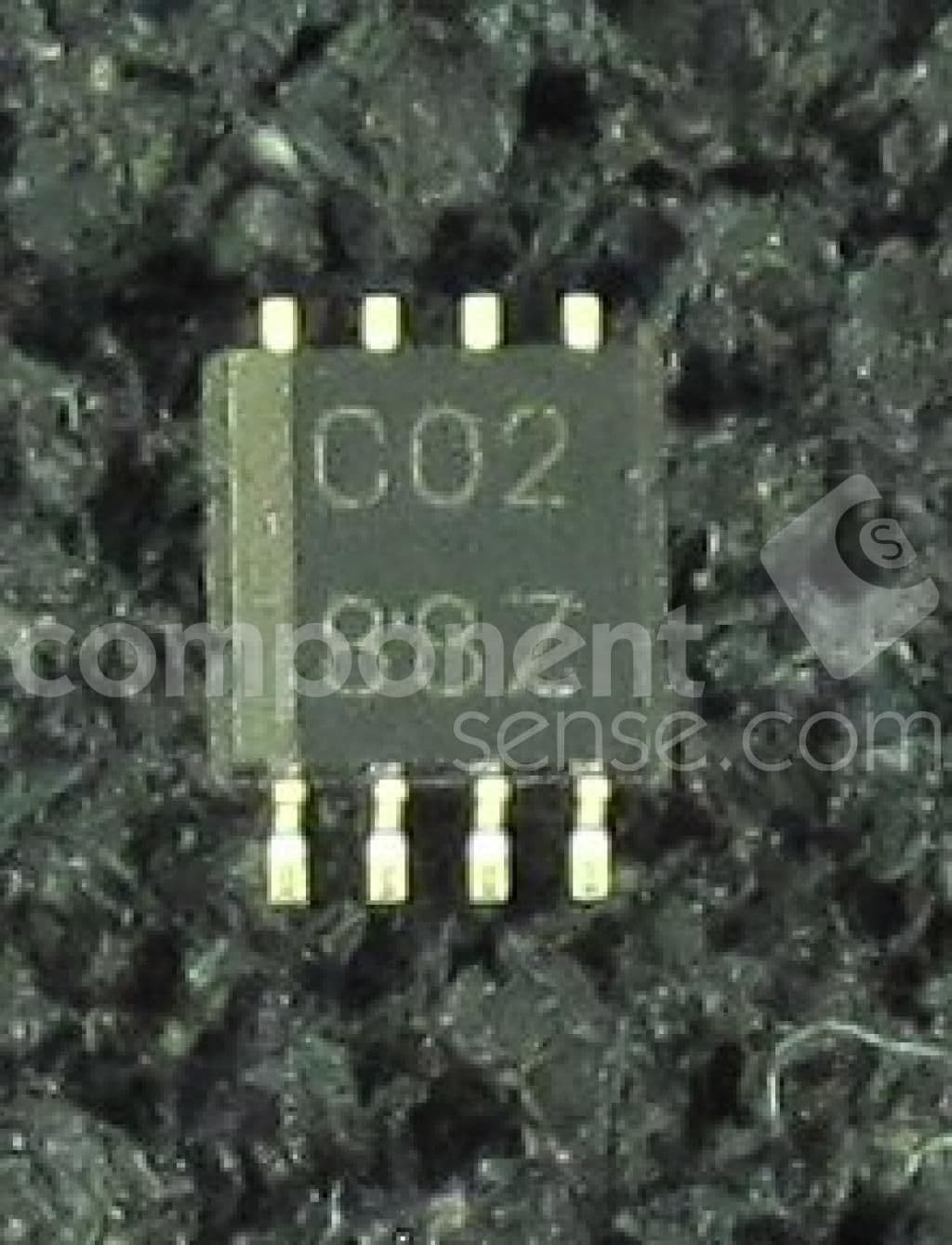

Product Images
