Dual 1.65V to 5.5V CMOS inverter IC with 2 independent inverter circuits. Features a 3.2ns propagation delay and 32mA output current capability. Operates across a -40°C to 125°C temperature range. Supplied in a compact 6-pin SC-70 surface-mount package. RoHS compliant and lead-free.
PackageSC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC2G04DCKR technical specifications.
General
Package/Case
SC
Height
1.1mm
High Level Output Current
-32mA
Lead Free
Lead Free
Length
2mm
Logic Function
Inverter
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
32mA
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Nominal Supply Current
10uA
Number of Bits
2
Number of Circuits
2
Number of Elements
2
Number of Gates
2
Number of Inputs
1
Number of Outputs
1
Output Current
32mA
Packaging
Tape and Reel
Propagation Delay
3.2ns
Quiescent Current
10uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Termination
SMD/SMT
Thickness
900um
Turn-On Delay Time
8ns
Weight
8.8E-05oz
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC2G04DCKR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC2G04DCKR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

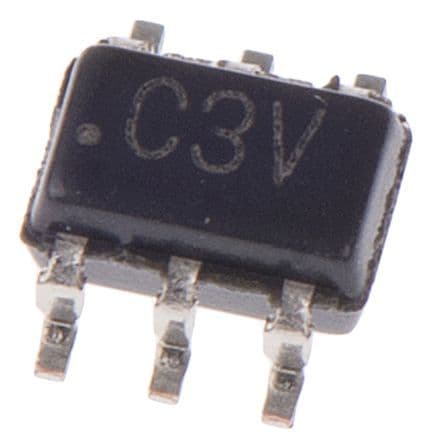

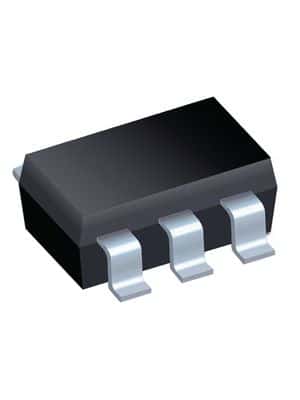

Product Images
