Dual 2-input, 1-bit CMOS buffer ICs with open-drain outputs. Operating from a 1.65V to 5.5V supply, these devices offer 2 channels with a maximum output current of 32mA. Featuring a propagation delay of 2.9ns and a turn-on delay of 8.6ns, they are designed for surface mount applications in a 6-pin SC package. Operating temperature range is -40°C to 125°C, with a quiescent current of 10uA.
PackageSC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC2G07DCKR technical specifications.
General
Package/Case
SC
High Level Output Current
32mA
Lead Free
Lead Free
Logic Function
Buffer, Inverting
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
2
Number of Bits per Element
1
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Number of Gates
2
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
2
Number of Outputs
2
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
2.9ns
Quiescent Current
10uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Termination
SMD/SMT
Turn-On Delay Time
8.6ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC2G07DCKR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC2G07DCKR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

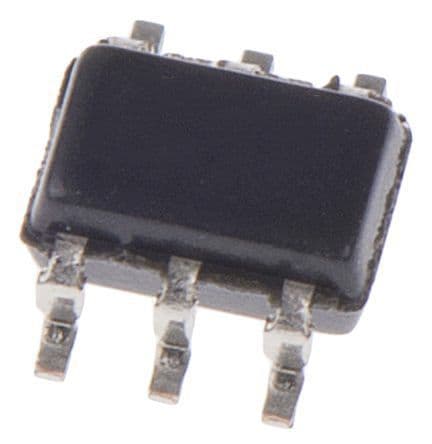

Product Images
