SN74LVC2G126YZPR

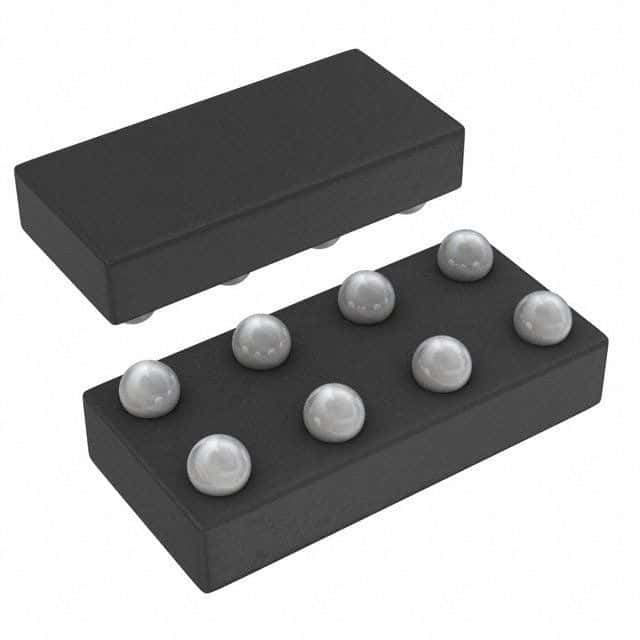

2-Bit 3-State Buffer IC, CMOS, 5.5V, BGA

Dual bus buffer gate with 3-state outputs, featuring 2 non-inverting buffer circuits. This CMOS logic IC operates from a 1.65V to 5.5V supply, offering a 3.2ns propagation delay and 12.6ns turn-on delay. It supports ±32mA high/low output current and is packaged in a BGA for surface mounting. Operating across a -40°C to 125°C temperature range, this RoHS compliant component is supplied on tape and reel.

PackageBGA

MountingSurface Mount

PolarityNon-Inverting

Quick Jump:

Technical Specifications

Texas Instruments SN74LVC2G126YZPR technical specifications.

General

Package/Case	BGA
High Level Output Current	-32mA
Lead Free	Lead Free
Logic Function	Buffer, Inverting
Low Level Output Current	32mA
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Supply Voltage	5.5V
Min Supply Voltage	1.65V
Mount	Surface Mount
Number of Bits	2
Number of Bits per Element	1
Number of Channels	2
Number of Circuits	2
Number of Elements	2
Number of Gates	2
Number of Input Lines	2
Number of Inputs	2
Number of Output Lines	2
Number of Outputs	2
Output Type	3-STATE
Package Quantity	3000
Packaging	Tape and Reel
Polarity	Non-Inverting
Propagation Delay	3.2ns
Quiescent Current	10uA
Radiation Hardening	No
RoHS Compliant	Yes
Series	74LVC
Technology	CMOS
Turn-On Delay Time	12.6ns
