Dual 2-input Schmitt trigger CMOS inverter IC, featuring 2 elements with 1 input each. Operates from 1.65V to 5.5V supply voltage, offering 32mA output current at both high and low levels. With a 4.3ns propagation delay and 9.5ns turn-on delay, this surface mount SC package component is RoHS compliant and operates within a -40°C to 125°C temperature range.
PackageSC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC2G14DCKR technical specifications.
General
Package/Case
SC
High Level Output Current
-32mA
Input Type
SCHMITT TRIGGER
Lead Free
Lead Free
Logic Function
Buffer, Inverter, Inverting, Schmitt Trigger
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
32mA
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
2
Number of Circuits
2
Number of Elements
2
Number of Gates
2
Number of Inputs
1
Output Current
32mA
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
4.3ns
Quiescent Current
10uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Termination
SMD/SMT
Turn-On Delay Time
9.5ns
Weight
8.8E-05oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC2G14DCKR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC2G14DCKR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

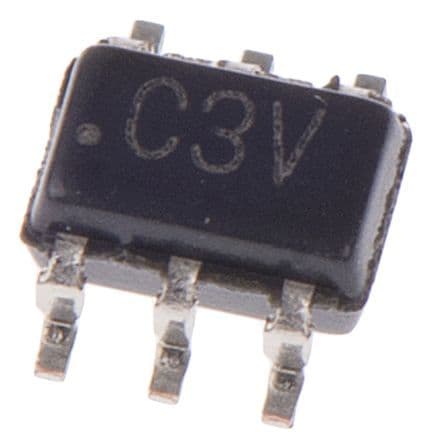

Product Images
