CMOS multiplexer IC featuring a single 2-to-1 element. This surface-mount component operates with a supply voltage range of 1.65V to 5.5V, offering a propagation delay of 6ns. It supports a high level output current of 32mA and a low level output current of 32mA. Packaged in an 8-pin VSSOP with dimensions of 2.1mm x 2.4mm x 0.8mm, this RoHS compliant device is supplied on tape and reel.
PackageVSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC2G157DCUT technical specifications.
General
| Package/Case | VSSOP |
| Height | 0.8mm |
| High Level Output Current | 32mA |
| Independent Circuits | 1 |
| Lead Free | Lead Free |
| Length | 2.1mm |
| Logic Function | Multiplexer, Mux |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 2 |
| Number of Channels | 1 |
| Number of Gates | 1 |
| Number of Input Lines | 2 |
| Number of Inputs | 2 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Propagation Delay | 6ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74LVC |
| Supply Type | Single |
| Termination | SMD/SMT |
| Thickness | 850um |
| Weight | 0.000339oz |
| Width | 2.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVC2G157DCUT Datasheet
Download the complete datasheet for Texas Instruments SN74LVC2G157DCUT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

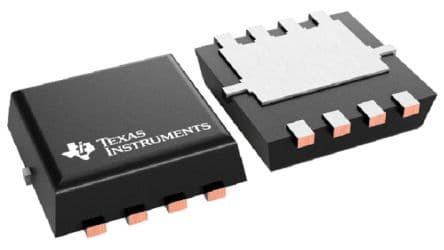

Product Images
