Dual-channel, non-inverting buffer IC featuring Schmitt-trigger inputs. Operates from a 1.65V to 5.5V supply voltage range. Offers a maximum output current of 32mA (low level) and -32mA (high level). CMOS technology ensures low quiescent current of 10µA. Packaged in a compact BGA for surface mounting, with a wide operating temperature range of -40°C to 125°C. Propagation delay is 4.3ns.
PackageBGA
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC2G17YZPR technical specifications.
General
Package/Case
BGA
High Level Output Current
-32mA
Lead Free
Lead Free
Logic Function
Schmitt Trigger, Buffer
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
2
Number of Bits per Element
1
Number of Channels
2
Number of Elements
2
Number of Gates
2
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
2
Number of Outputs
2
Package Quantity
1
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
4.3ns
Quiescent Current
10uA
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Turn-On Delay Time
9.3ns
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC2G17YZPR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC2G17YZPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

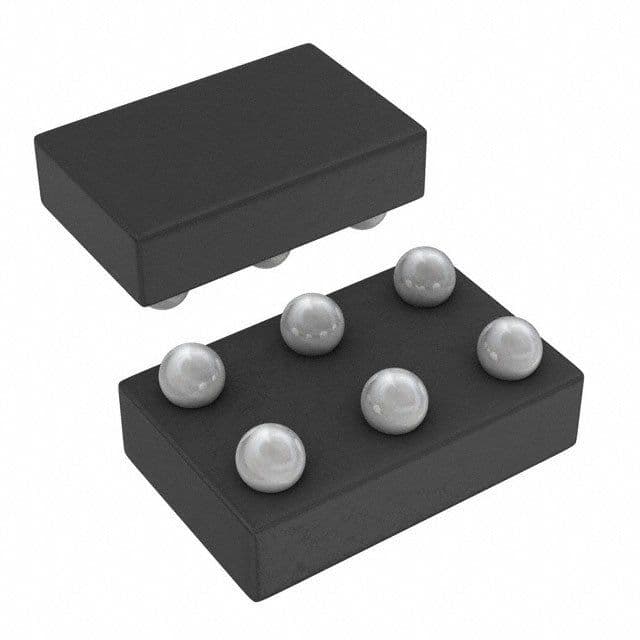

Product Images
