Dual buffer/driver with 3-state outputs, featuring 2 non-inverting buffer elements. Operates from a 1.65V to 5.5V supply voltage, with a maximum quiescent current of 10µA. Offers a high level output current of -32mA and a low level output current of 32mA. Packaged in a 0.8mm height, 2.1mm length, 2.4mm width VSSOP for surface mounting, with a propagation delay of 12.5ns. Suitable for operation across a -40°C to 125°C temperature range.
PackageVSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC2G241DCUR technical specifications.
General
| Package/Case | VSSOP |
| Height | 0.8mm |
| High Level Output Current | -32mA |
| Lead Free | Lead Free |
| Length | 2.1mm |
| Logic Function | Buffer, Inverting |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 2 |
| Number of Bits per Element | 1 |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Number of Gates | 2 |
| Number of Input Lines | 2 |
| Number of Inputs | 2 |
| Number of Output Lines | 2 |
| Number of Outputs | 2 |
| Output Type | 3-STATE |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 12.5ns |
| Quiescent Current | 10uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74LVC |
| Technology | CMOS |
| Turn-On Delay Time | 9.8ns |
| Width | 2.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVC2G241DCUR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC2G241DCUR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

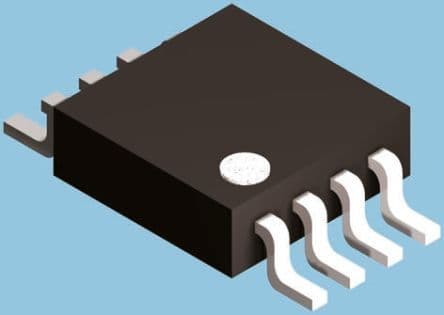

Product Images
