Dual 2-input OR gate IC, featuring CMOS technology and a 1.65V to 5.5V operating voltage range. This surface mount component offers a 3.2ns propagation delay and supports output currents of +/-32mA. Designed for operation between -40°C and 125°C, it is RoHS compliant and packaged in tape and reel.
PackageSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC2G32DCTRG4 technical specifications.
General
| Package/Case | SSOP |
| High Level Output Current | -32mA |
| Lead Free | Lead Free |
| Logic Function | OR GATE |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Gates | 2 |
| Number of Input Lines | 2 |
| Number of Inputs | 2 |
| Number of Output Lines | 1 |
| Number of Outputs | 1 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Propagation Delay | 3.2ns |
| Quiescent Current | 10uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74LVC |
| Technology | CMOS |
| Weight | 0.000825oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVC2G32DCTRG4 Datasheet
Download the complete datasheet for Texas Instruments SN74LVC2G32DCTRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

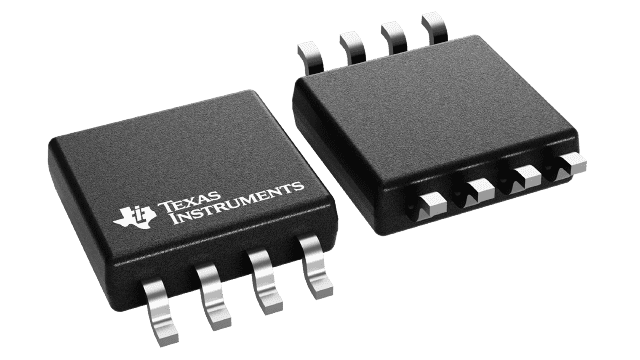

Product Images
