Automotive 2-channel, 2-input OR gate IC. Features a 1.65-V to 5.5-V operating voltage range and CMOS technology. Delivers 32mA high and low level output current with a propagation delay of 4.7ns. Packaged in an 8-VSSOP surface-mount configuration, operating from -40°C to 125°C. RoHS compliant and lead-free.
PackageVSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC2G32QDCURQ1 technical specifications.
General
Package/Case
VSSOP
Height
900um
High Level Output Current
32mA
Lead Free
Lead Free
Length
2.3mm
Logic Function
OR GATE
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Nominal Supply Current
10uA
Number of Bits
2
Number of Circuits
2
Number of Elements
2
Number of Gates
2
Number of Input Lines
2
Number of Inputs
2
Number of Output Lines
1
Number of Outputs
1
Output Voltage
0V
Package Quantity
1
Packaging
Tape and Reel
Propagation Delay
4.7ns
Quiescent Current
10uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Thickness
850um
Turn-On Delay Time
3.8ns
Weight
0.001058oz
Width
2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC2G32QDCURQ1 Datasheet
Download the complete datasheet for Texas Instruments SN74LVC2G32QDCURQ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

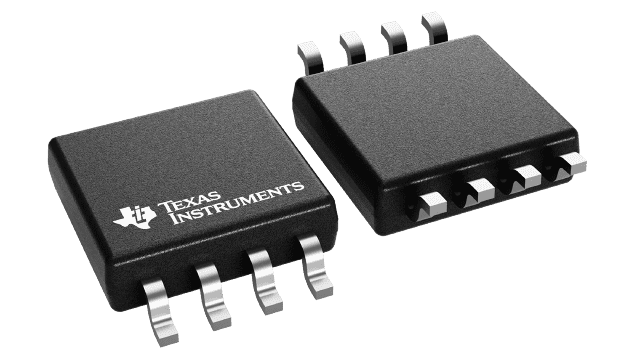

Product Images
