Single positive-edge-triggered D-type flip-flop with clear and preset functionality. Features a 200MHz maximum frequency and 14.4ns propagation delay. Operates from 1.65V to 5.5V supply voltage with a 32mA output current capability. Surface mountable in an 8-VSSOP package, this CMOS logic IC is RoHS compliant and operates across a -40°C to 125°C temperature range.
Frequency200MHz
PackageVSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC2G74DCUR technical specifications.
General
Package/Case
VSSOP
Clock Edge Trigger Type
Positive Edge
Frequency
200MHz
Height
0.85mm
High Level Output Current
-32mA
Input Capacitance
5pF
Lead Free
Lead Free
Length
2.3mm
Logic Function
D-Type
Low Level Output Current
32mA
Max Frequency
200MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
1
Number of Bits per Element
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Number of Gates
2
Number of Input Lines
1
Number of Output Lines
1
Output Current
32mA
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
14.4ns
Quiescent Current
10uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Termination
SMD/SMT
Turn-On Delay Time
6.2ns
Weight
0.000339oz
Width
2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC2G74DCUR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC2G74DCUR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

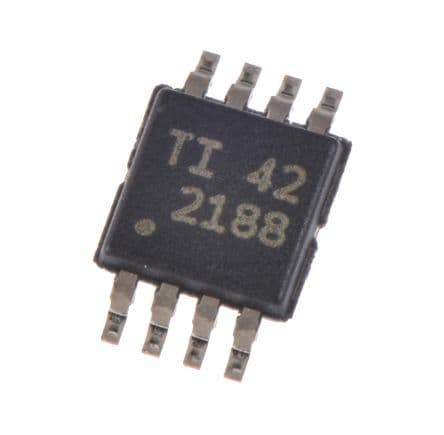

Product Images
