3-channel CMOS inverter IC, operating from 1.65V to 5.5V with a typical 5V supply. Features 3 independent inverter gates, each with a single input and output. Offers a high level output current of -32mA and a low level output current of 32mA. Operates across a wide temperature range of -40°C to 125°C. Packaged in an 8-VSSOP surface-mount configuration, supplied on tape and reel.
PackageVSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC3G04DCURG4 technical specifications.
General
| Package/Case | VSSOP |
| High Level Output Current | -32mA |
| Lead Free | Lead Free |
| Logic Function | Buffer, Inverter |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 3 |
| Number of Circuits | 3 |
| Number of Elements | 3 |
| Number of Gates | 3 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Propagation Delay | 3.2ns |
| Quiescent Current | 10uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74LVC |
| Technology | CMOS |
| Turn-On Delay Time | 7.9ns |
| Weight | 0.000339oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVC3G04DCURG4 Datasheet
Download the complete datasheet for Texas Instruments SN74LVC3G04DCURG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

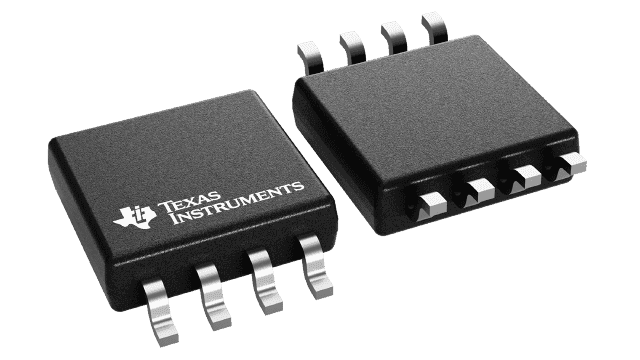

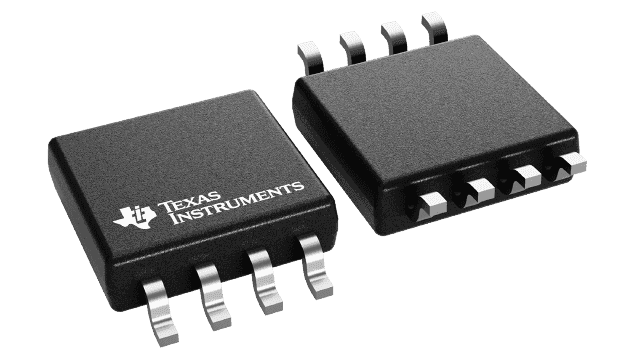

Product Images
