Triple Inverter Buffer/Driver, CMOS technology, featuring open-drain outputs. Operates with a supply voltage range of 1.65V to 5.5V, supporting high and low level output currents of 32mA. This surface mount component offers a propagation delay of 7.2ns and a turn-on delay time of 2.9ns. Designed for operation across a temperature range of -40°C to 125°C, it is RoHS compliant and packaged in a VSSOP.
PackageVSSOP
MountingSurface Mount
PolarityInverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC3G06DCUR technical specifications.
General
| Package/Case | VSSOP |
| High Level Output Current | 32mA |
| Lead Free | Lead Free |
| Logic Function | Buffer, Inverter |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Nominal Supply Current | 40mA |
| Number of Bits | 3 |
| Number of Channels | 3 |
| Number of Circuits | 3 |
| Number of Elements | 3 |
| Number of Gates | 3 |
| Number of Input Lines | 3 |
| Number of Inputs | 3 |
| Number of Output Lines | 3 |
| Number of Outputs | 3 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Inverting |
| Propagation Delay | 7.2ns |
| Quiescent Current | 10uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74LVC |
| Technology | CMOS |
| Thickness | 850um |
| Turn-On Delay Time | 2.9ns |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVC3G06DCUR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC3G06DCUR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

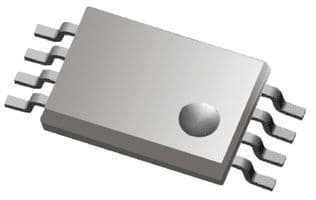

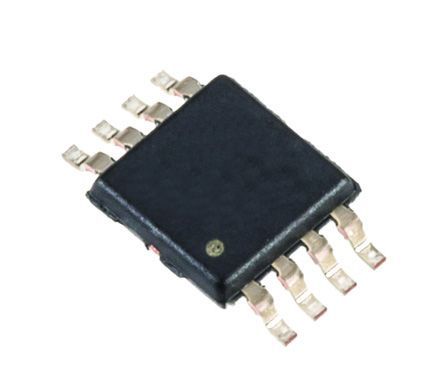

Product Images
