Triple Schmitt-Trigger Inverter, CMOS technology, operating from 1.65V to 5.5V with a typical 5V supply. Features three independent inverter circuits, each with a single Schmitt-trigger input. Delivers 32mA high-level and 32mA low-level output current. Packaged in an 8-VSSOP surface-mount configuration, suitable for operation between -40°C and 125°C. Propagation delay is 4.3ns.
PackageVSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC3G14DCURG4 technical specifications.
General
| Package/Case | VSSOP |
| High Level Output Current | -32mA |
| Input Type | SCHMITT TRIGGER |
| Lead Free | Lead Free |
| Logic Function | Buffer, Inverter, Schmitt Trigger |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 3 |
| Number of Circuits | 3 |
| Number of Elements | 3 |
| Number of Gates | 3 |
| Number of Inputs | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Propagation Delay | 4.3ns |
| Quiescent Current | 10uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74LVC |
| Technology | CMOS |
| Turn-On Delay Time | 9.2ns |
| Weight | 0.000339oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVC3G14DCURG4 Datasheet
Download the complete datasheet for Texas Instruments SN74LVC3G14DCURG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

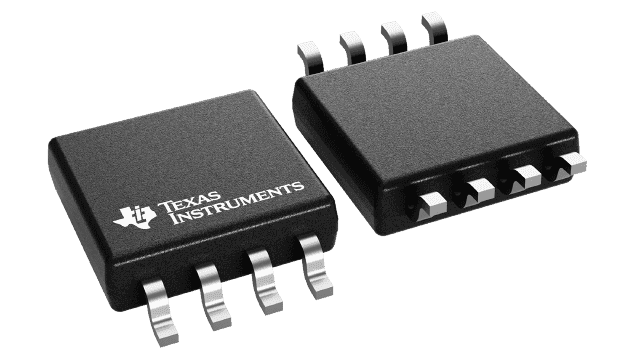

Product Images
