3-Channel Schmitt Trigger Buffer, Non-Inverting, Push-Pull CMOS Logic IC. Features a 1.65V to 5.5V operating supply voltage range with a typical 3.3V operation. Offers 32mA high-level and low-level output current, with a 4.1ns propagation delay. Packaged in an 8-Pin SSOP for surface mounting, this component operates from -40°C to 125°C and is RoHS compliant.
PackageSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC3G17DCTR technical specifications.
General
| Package/Case | SSOP |
| High Level Output Current | -32mA |
| Input Type | SCHMITT TRIGGER |
| Lead Free | Lead Free |
| Logic Function | Buffer, Inverting, Schmitt Trigger |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 3 |
| Number of Bits per Element | 1 |
| Number of Channels | 3 |
| Number of Elements | 3 |
| Number of Gates | 3 |
| Number of Input Lines | 3 |
| Number of Inputs | 3 |
| Number of Output Lines | 3 |
| Number of Outputs | 3 |
| Operating Supply Voltage | 3.3V |
| Output Type | PUSH-PULL |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 4.1ns |
| Quiescent Current | 10uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74LVC |
| Technology | CMOS |
| Termination | SMD/SMT |
| Turn-On Delay Time | 9.2ns |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVC3G17DCTR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC3G17DCTR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

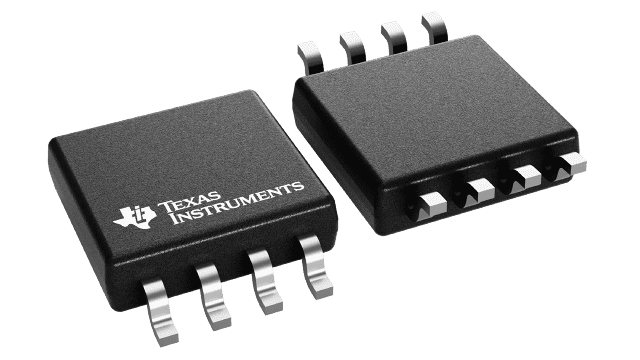

Product Images
