3-channel, non-inverting buffer IC with a 1.65V to 5.5V supply voltage range. Features CMOS technology, push-pull output type, and a propagation delay of 3.2ns. Operates from -40°C to 125°C with a nominal supply current of 10µA. Packaged in an 8-VSSOP surface-mount configuration, measuring 2.3mm x 2mm x 900µm. RoHS compliant and lead-free.
PackageVSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC3G34DCUR technical specifications.
General
Package/Case
VSSOP
Height
900um
High Level Output Current
-32mA
Lead Free
Lead Free
Length
2.3mm
Logic Function
Buffer, Inverting
Low Level Output Current
32mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Nominal Supply Current
10uA
Number of Bits
3
Number of Bits per Element
1
Number of Channels
3
Number of Circuits
3
Number of Elements
3
Number of Gates
3
Number of Input Lines
3
Number of Inputs
3
Number of Output Lines
3
Number of Outputs
3
Output Type
PUSH-PULL
Package Quantity
3000
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
3.2ns
Quiescent Current
10uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Termination
SMD/SMT
Thickness
850um
Turn-On Delay Time
7.9ns
Width
2mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC3G34DCUR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC3G34DCUR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

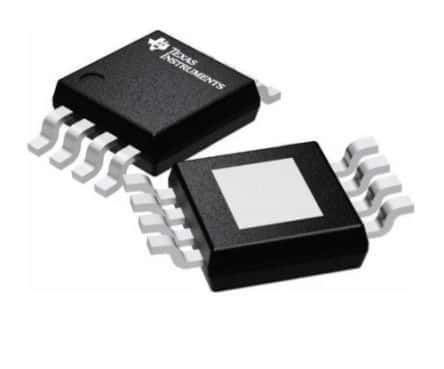

Product Images
