8-bit bidirectional voltage level translator, CMOS technology, operating from 4.5V to 5.5V supply voltage. Features 8 channels, non-inverting logic, and 3-state outputs with ±24mA output current. Surface mountable in a 24-pin SOIC package, offering a propagation delay of 9.8ns and turn-on delay of 6.7ns. RoHS compliant with a wide operating temperature range of -40°C to 85°C.
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC4245ADW technical specifications.
General
| Package/Case | SOIC |
| Direction | Bidirectional |
| Height | 2.35mm |
| High Level Output Current | -24mA |
| Lead Free | Lead Free |
| Length | 15.4mm |
| Logic Function | Translator, Transceiver |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 80uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Channels | 8 |
| Number of Circuits | 8 |
| Number of Elements | 1 |
| Number of Outputs | 8 |
| Operating Supply Voltage | 5V |
| Output Type | Voltage, 3-STATE |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 9.8ns |
| Quiescent Current | 80uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74LVC |
| Technology | CMOS |
| Turn-On Delay Time | 6.7ns |
| Weight | 0.022025oz |
| Width | 7.52mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVC4245ADW Datasheet
Download the complete datasheet for Texas Instruments SN74LVC4245ADW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

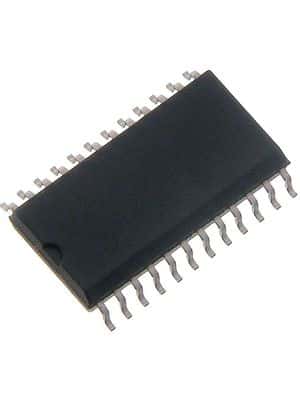

Product Images
