Octal bus transceiver featuring 8 bidirectional channels and 3-state outputs. Operates with a supply voltage range of 2.7V to 5.5V, supporting 3.3V to 5V shifting. CMOS technology ensures low quiescent current of 80µA. Packaged in a 24-TSSOP, surface-mount device with a propagation delay of 6.7ns. Suitable for operation between -40°C and 85°C.
PackageTSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC4245APWR technical specifications.
General
Package/Case
TSSOP
Channel Type
Bidirectional
Direction
Bidirectional
Height
1.15mm
High Level Output Current
-24mA
Lead Free
Lead Free
Length
7.8mm
Logic Function
Transceiver
Low Level Output Current
24mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
80uA
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
8
Number of Channels
8
Number of Circuits
1
Number of Elements
1
Number of Outputs
8
Number of Transceivers
8
Operating Supply Voltage
5V
Output Type
3-STATE
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
6.7ns
Quiescent Current
80uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Termination
SMD/SMT
Turn-On Delay Time
9.8ns
Weight
0.003157oz
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC4245APWR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC4245APWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

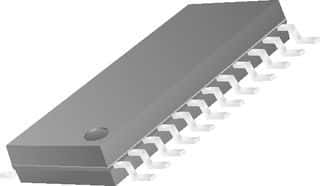

Product Images
