8-bit, 3-state, transparent D-type latch IC. Features 8 independent output channels with a maximum output current of 24mA. Operates from a 1.65V to 3.6V supply voltage with a propagation delay of 6.9ns. Packaged in a 20-pin TSSOP for surface mounting. RoHS compliant and operates across a -40°C to 125°C temperature range.
PackageTSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC573APW technical specifications.
General
Package/Case
TSSOP
High Level Output Current
-24mA
Independent Circuits
1
Lead Free
Lead Free
Logic Function
D-Type, Latch
Low Level Output Current
24mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
8
Number of Channels
8
Number of Circuits
8
Number of Elements
1
Number of Input Lines
3
Number of Output Lines
1
Number of Outputs
8
Output Current
24mA
Output Type
3-STATE
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
6.9ns
Quiescent Current
10uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Turn-On Delay Time
2ns
Weight
0.002716oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC573APW Datasheet
Download the complete datasheet for Texas Instruments SN74LVC573APW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

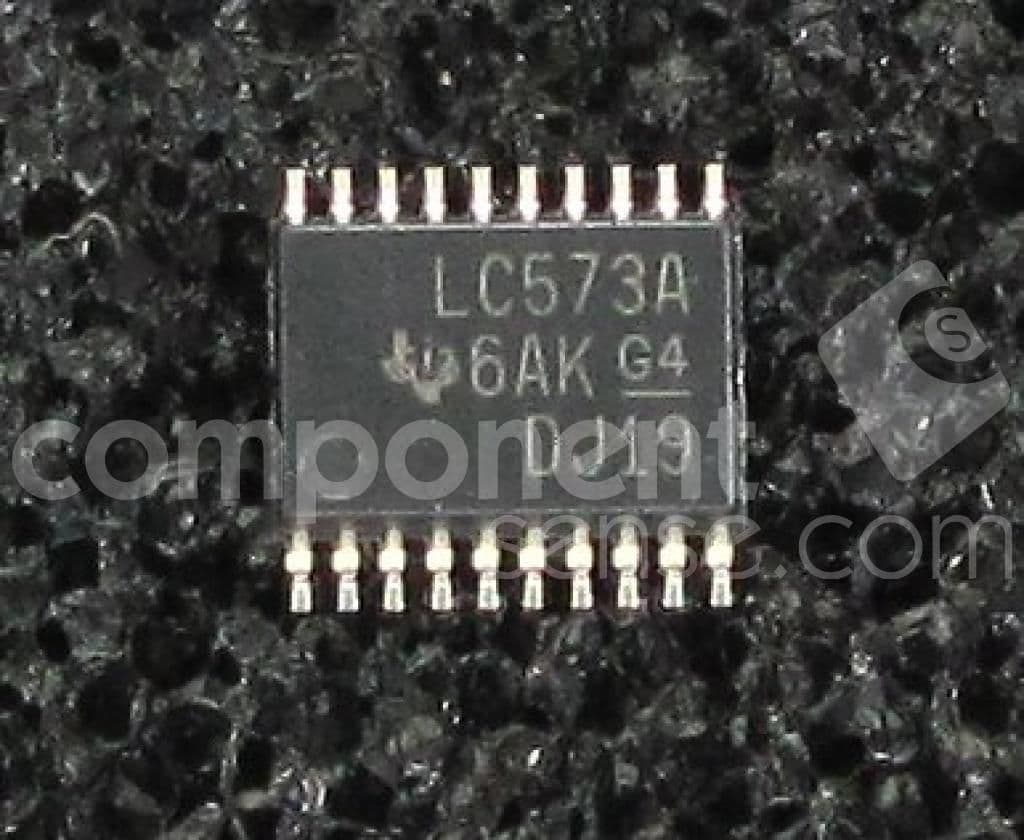

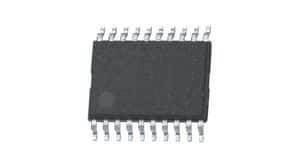

Product Images
