Texas Instruments
SN74LVC8T245DGVR
8-Bit Bidirectional Level Translator, 500Mbps, 1.65-5.5V, CMOS, TFSOP
8-bit bidirectional voltage level translator, featuring CMOS technology and 3-STATE outputs. Supports a wide operating supply voltage range from 1.65V to 5.5V, with a typical 3.3V operation. Offers a high data rate of 500Mbps and a low propagation delay of 4.2ns. Designed for surface mount with a 24-pin TVSOP package, this transceiver operates bidirectionally across 8 channels. RoHS compliant and lead-free, it functions within an extended temperature range of -40°C to 85°C.
PackageTFSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC8T245DGVR technical specifications.
General
Package/Case
TFSOP
Channel Type
Bidirectional
Data Rate
500Mbps
Direction
Bidirectional
High Level Output Current
-32mA
Lead Free
Lead Free
Logic Function
Transceiver, Translator
Low Level Output Current
32mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Number of Bits
8
Number of Channels
8
Number of Circuits
1
Number of Elements
1
Number of Inputs
8
Number of Outputs
8
Number of Transceivers
8
Operating Supply Voltage
3.3V
Output Type
3-STATE
Package Quantity
2000
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
4.2ns
Quiescent Current
15uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Termination
SMD/SMT
Thickness
1.05mm
Turn-On Delay Time
32.2ns
Weight
0.002148oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC8T245DGVR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC8T245DGVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

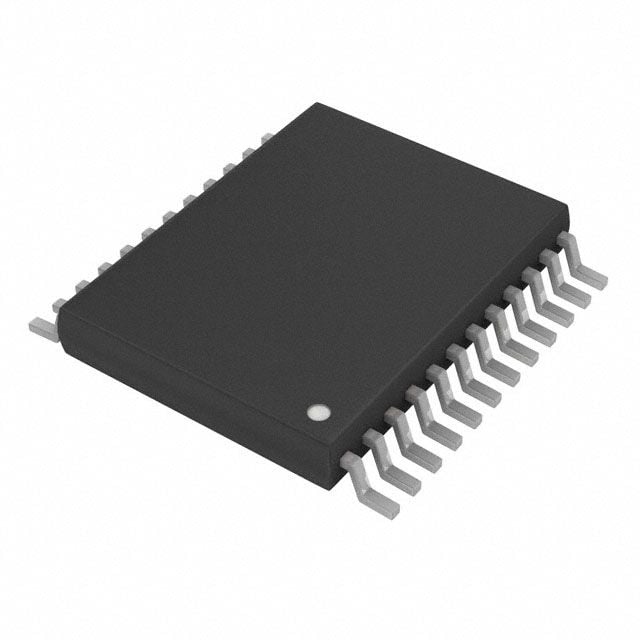

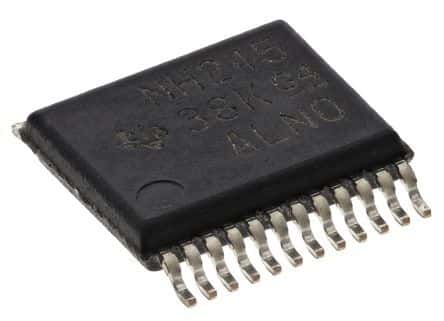

Product Images
