Texas Instruments
SN74LVC8T245DGVRG4
8-Bit Dual-Supply Bus Transceiver with Configurable Voltage-Level Shifting and Three-State Outputs 24-TVSOP -40 to 85
PackageTFSOP
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC8T245DGVRG4 technical specifications.
General
| Package/Case | TFSOP |
| Data Rate | 500Mbps |
| Direction | Bidirectional |
| Lead Free | Lead Free |
| Logic Function | Translator, Transceiver |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Number of Bits | 8 |
| Number of Channels | 1 |
| Number of Outputs | 8 |
| Output Current | 32mA |
| Output Type | 3-STATE |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Propagation Delay | 4.2ns |
| RoHS Compliant | Yes |
| Series | 74LVC |
| Weight | 0.002116oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVC8T245DGVRG4 Datasheet
Download the complete datasheet for Texas Instruments SN74LVC8T245DGVRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

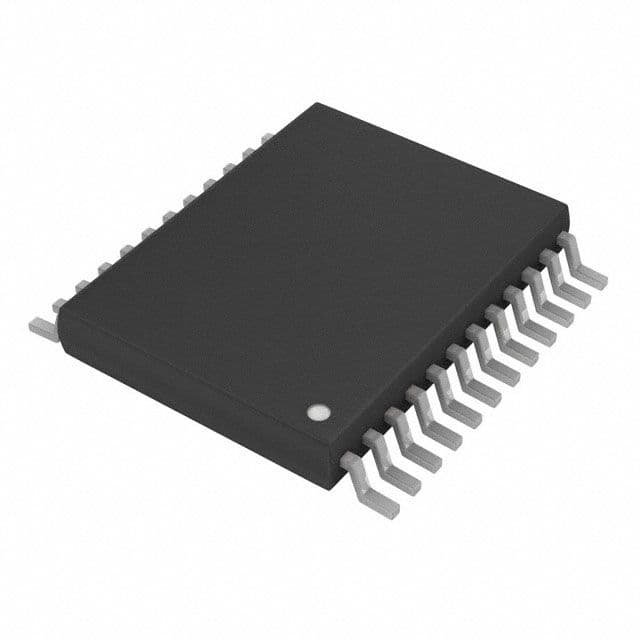

Product Images
