SN74LVC8T245DWR
8-Bit Dual-Supply Bus Transceiver with Configurable Voltage-Level Shifting and Three-State Outputs 24-SOIC -40 to 85
PackageSOIC
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC8T245DWR technical specifications.
General
| Package/Case | SOIC |
| Data Rate | 500Mbps |
| High Level Output Current | 32mA |
| Lead Free | Lead Free |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.65V |
| Nominal Supply Current | 25uA |
| Number of Bits | 8 |
| Number of Circuits | 2 |
| Number of Outputs | 8 |
| Output Type | 3-STATE |
| Package Quantity | 2000 |
| Packaging | Cut Tape |
| Propagation Delay | 4.2ns |
| RoHS Compliant | Yes |
| Series | SN74LVC8T245 |
| Thickness | 2.35mm |
| Weight | 0.022025oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVC8T245DWR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC8T245DWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

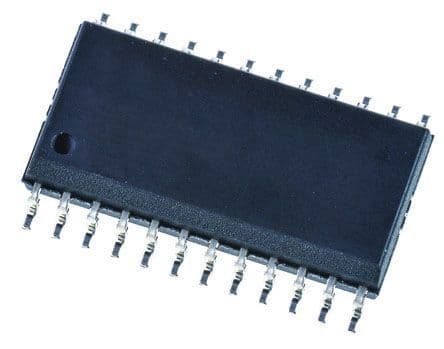

Product Images
