8-bit dual-supply bus transceiver with configurable voltage-level shifting and three-state outputs. This CMOS logic IC features bidirectional data flow, supporting a 500Mbps data rate. Operating across a 1.65V to 5.5V supply voltage range, it offers 32mA output current and a propagation delay of 32.2ns. Packaged in a 24-VQFN for surface mounting, this RoHS compliant component operates from -40°C to 85°C.
PackageVQFN
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVC8T245RHLR technical specifications.
General
Package/Case
VQFN
Channel Type
Bidirectional
Data Rate
500Mbps
Direction
Bidirectional
Height
0.95mm
High Level Output Current
-32mA
Lead Free
Lead Free
Length
5.65mm
Logic Function
Transceiver, Translator
Low Level Output Current
32mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
1.65V
Mount
Surface Mount
Nominal Supply Current
15uA
Number of Bits
8
Number of Channels
8
Number of Circuits
1
Number of Elements
1
Number of Inputs
8
Number of Outputs
8
Output Current
32mA
Output Type
3-STATE
Packaging
Tape and Reel
Polarity
Non-Inverting
Propagation Delay
32.2ns
Quiescent Current
15uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVC
Technology
CMOS
Turn-On Delay Time
4.3ns
Weight
0.001767oz
Width
3.65mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVC8T245RHLR Datasheet
Download the complete datasheet for Texas Instruments SN74LVC8T245RHLR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

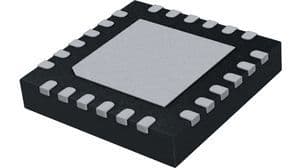

Product Images
