Texas Instruments
SN74LVCC3245ADWRG4
Octal Bus Transceiver, 8-Bit, Bidirectional, 200Mbps, 3-State, SOIC
Octal bus transceiver featuring bidirectional data flow and 3-state outputs. Operates with a supply voltage range of 2.3V to 5.5V and supports data rates up to 200Mbps. This CMOS technology component offers adjustable output voltage and a non-inverting logic function. Designed for surface mounting in a 24-SOIC package, it functions across an industrial temperature range of -40°C to 85°C. Key electrical characteristics include 24mA output current and a propagation delay of 14.5ns.
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVCC3245ADWRG4 technical specifications.
General
| Package/Case | SOIC |
| Data Rate | 200Mbps |
| Direction | Bidirectional |
| High Level Output Current | -24mA |
| Lead Free | Lead Free |
| Logic Function | Translator, Transceiver |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Channels | 8 |
| Number of Elements | 1 |
| Number of Outputs | 8 |
| Output Current | 24mA |
| Output Type | 3-STATE, Voltage |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 14.5ns |
| Quiescent Current | 8uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74LVCC |
| Technology | CMOS |
| Turn-On Delay Time | 14.5ns |
| Weight | 0.022025oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVCC3245ADWRG4 Datasheet
Download the complete datasheet for Texas Instruments SN74LVCC3245ADWRG4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

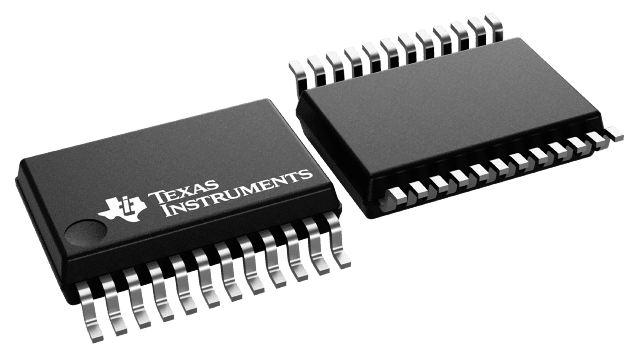

Product Images
