16-bit edge-triggered D-type flip-flop with 3-state outputs, operating from 1.65V to 3.6V. Features positive edge clocking, 150MHz frequency, and 4.9ns propagation delay. Offers 24mA output current at both high and low levels. This CMOS logic IC is surface mountable in a TFSOP package, RoHS compliant, and operates across a temperature range of -40°C to 125°C.
Frequency150MHz
PackageTFSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVCH16374ADGVR technical specifications.
General
| Package/Case | TFSOP |
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 150MHz |
| High Level Output Current | -24mA |
| Lead Free | Lead Free |
| Logic Function | D-Type, Flip-Flop |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1.65V |
| Mount | Surface Mount |
| Number of Bits | 16 |
| Number of Bits per Element | 8 |
| Number of Circuits | 8 |
| Number of Elements | 2 |
| Number of Input Lines | 8 |
| Number of Output Lines | 3 |
| Number of Outputs | 16 |
| Output Current | 24mA |
| Output Type | 3-STATE |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 4.9ns |
| RoHS Compliant | Yes |
| Series | 74LVCH |
| Technology | CMOS |
| Turn-On Delay Time | 1.5ns |
| Weight | 0.004356oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVCH16374ADGVR Datasheet
Download the complete datasheet for Texas Instruments SN74LVCH16374ADGVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

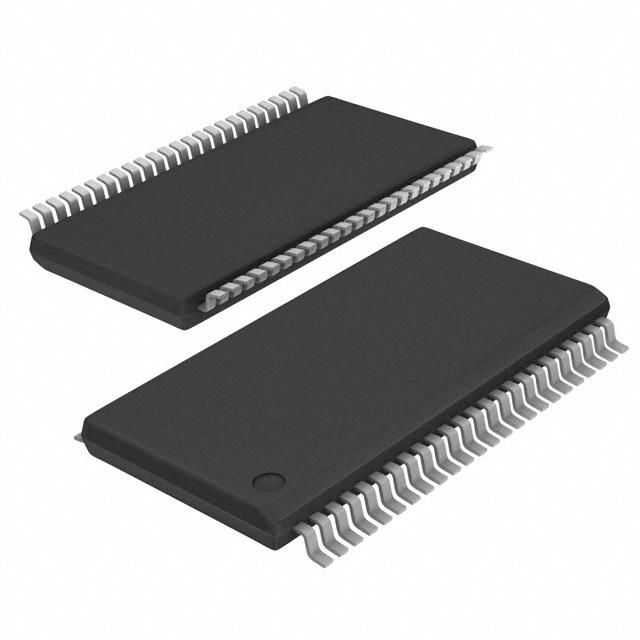

Product Images
