8-bit, 3-state, bidirectional bus transceiver featuring BICMOS technology. This surface mount component operates from a 2.7V to 3.6V supply, with a typical 3.3V operating voltage. It offers 64mA high-level and 32mA low-level output current, with a propagation delay of 2.3ns. Packaged in a 20-pin TSSOP, this RoHS compliant device is suitable for a wide temperature range of -40°C to 85°C.
PackageTSSOP
Current190uA
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVT245BPW technical specifications.
General
Package/Case
TSSOP
Direction
Bidirectional
High Level Output Current
64mA
Lead Free
Lead Free
Logic Function
Transceiver, Inverting
Low Level Output Current
32mA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Bits
8
Number of Bits per Element
8
Number of Channels
8
Number of Circuits
8
Number of Elements
1
Number of Transceivers
8
Operating Supply Voltage
3.3V
Output Type
3-STATE
Package Quantity
70
Packaging
Rail/Tube
Polarity
Non-Inverting
Propagation Delay
2.3ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
74LVT
Supply Current
190uA
Technology
BICMOS
Termination
SMD/SMT
Turn-On Delay Time
7.1ns
Weight
0.002716oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74LVT245BPW Datasheet
Download the complete datasheet for Texas Instruments SN74LVT245BPW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

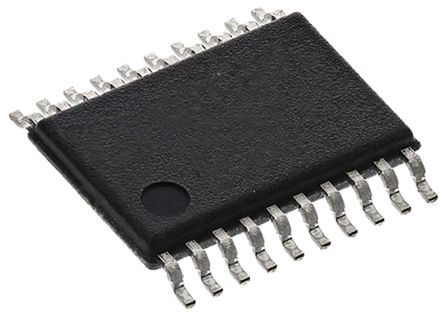

Product Images
