16-bit bidirectional bus transceiver and register with 3-state outputs. Features 3.3V operating supply voltage, 2.7V to 3.6V supply voltage range, and 4.7ns propagation delay. Offers 64mA high-level output current and 32mA low-level output current. This BICMOS technology device operates from -40°C to 85°C and is available in a TSSOP package for surface mounting.
PackageTSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74LVTH16646DGGR technical specifications.
General
| Package/Case | TSSOP |
| Direction | Bidirectional |
| High Level Output Current | 64mA |
| Lead Free | Lead Free |
| Logic Function | Transceiver, Inverting |
| Low Level Output Current | 32mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Bits | 16 |
| Number of Bits per Element | 8 |
| Number of Channels | 16 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Operating Supply Voltage | 3.3V |
| Output Type | 3-STATE |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 4.7ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74LVTH |
| Technology | BICMOS |
| Turn-On Delay Time | 6.8ns |
| Weight | 0.008917oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVTH16646DGGR Datasheet
Download the complete datasheet for Texas Instruments SN74LVTH16646DGGR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

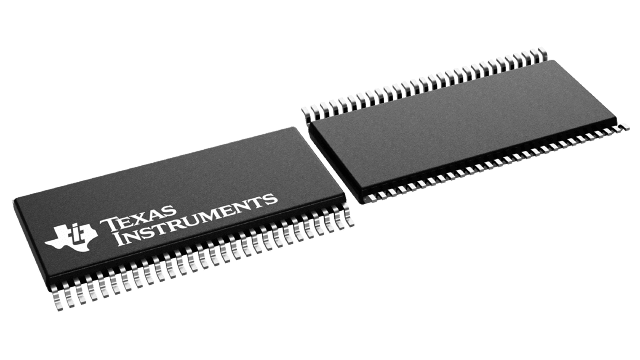

Product Images
