Octal D-Type Flip-Flop, featuring 8 bits and positive edge clock triggering. Operates at a maximum frequency of 150MHz with a 5.5ns propagation delay and 3.2ns turn-on delay. Supports a 3.3V operating supply voltage, with a range of 2.7V to 3.6V. Offers 64mA low-level output current and -32mA high-level output current. Packaged in a 20-SOIC for surface mounting, this component is RoHS compliant and operates within a temperature range of -40°C to 85°C.
Frequency150MHz
PackageSOIC
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications

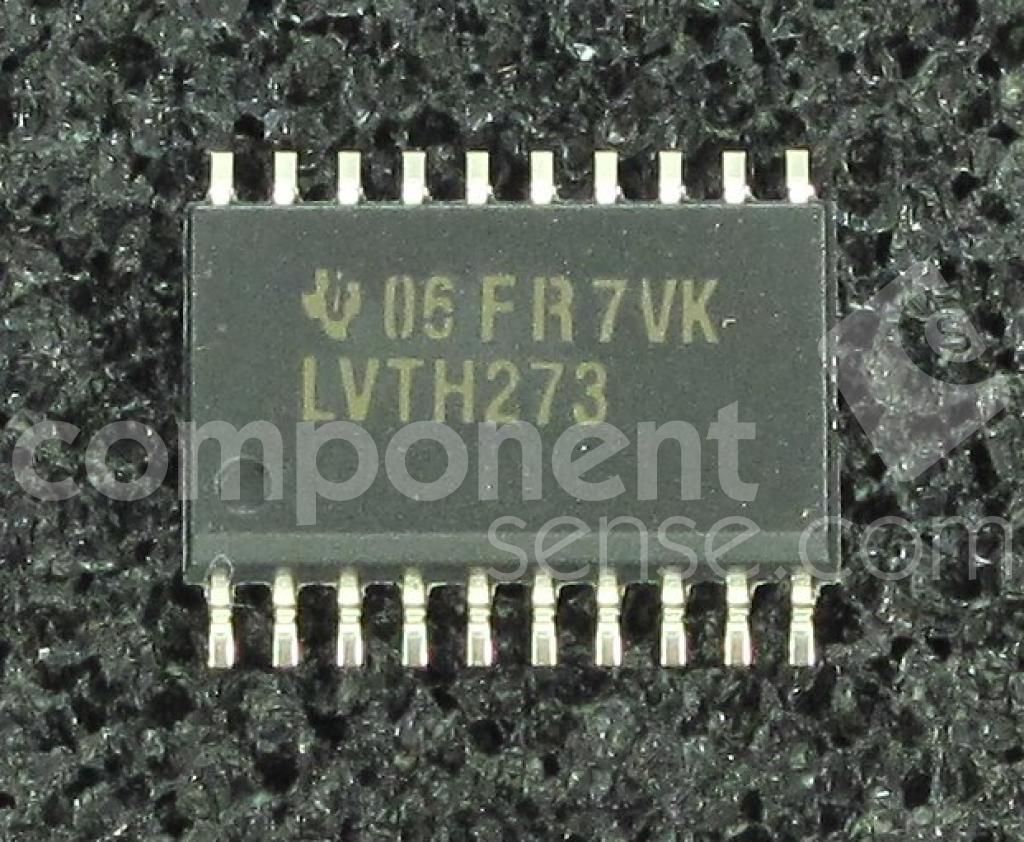

Texas Instruments SN74LVTH273DW technical specifications.
General
| Package/Case | SOIC |
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 150MHz |
| High Level Output Current | -32mA |
| Lead Free | Lead Free |
| Logic Function | D-Type |
| Low Level Output Current | 64mA |
| Max Frequency | 150MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Bits per Element | 8 |
| Number of Elements | 1 |
| Operating Supply Voltage | 3.3V |
| Output Current | 64mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 5.5ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 74LVTH |
| Technology | BICMOS |
| Turn-On Delay Time | 3.2ns |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74LVTH273DW Datasheet
Download the complete datasheet for Texas Instruments SN74LVTH273DW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
