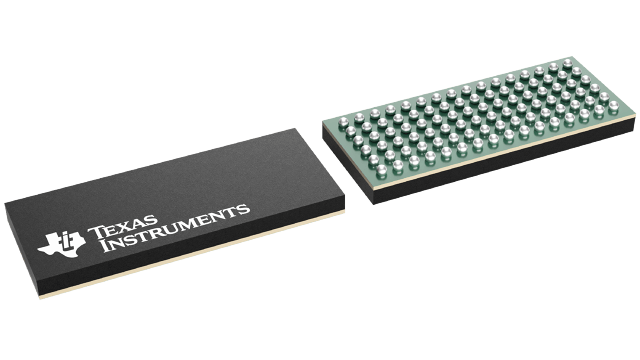

25-bit registered buffer, single-element CMOS logic IC operating at up to 410MHz. Features positive edge clock triggering, non-inverting polarity, and a propagation delay of 0.8ns. Designed for surface mount with a 96-pin BGA package, it operates from a 1.7V to 1.9V supply. This RoHS compliant component is suitable for a wide temperature range of -40°C to 85°C.
Frequency410MHz
PackageBGA
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74SSTUB32866ZWLR technical specifications.
General
| Package/Case | BGA |
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 410MHz |
| High Level Output Current | -8mA |
| Lead Free | Lead Free |
| Logic Function | Buffer |
| Low Level Output Current | 8mA |
| Max Frequency | 410MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 1.9V |
| Min Supply Voltage | 1.7V |
| Mount | Surface Mount |
| Number of Bits | 25 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Number of Inputs | 25 |
| Number of Outputs | 25 |
| Operating Supply Voltage | 1.8V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 0.8ns |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74SSTUB |
| Technology | CMOS |
| Turn-On Delay Time | 3ns |
| Weight | 0.006349oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74SSTUB32866ZWLR Datasheet
Download the complete datasheet for Texas Instruments SN74SSTUB32866ZWLR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
