26-bit, single-element CMOS shift register with 3-state, non-inverting outputs. Features positive edge clock triggering and a maximum operating frequency of 200MHz. Supports a supply voltage range of 2.3V to 2.7V, with a typical operating voltage of 2.5V. Designed for surface mounting in an LFBGA package, offering 26 input and 26 output lines. Propagation delay is 2.8ns, with a turn-on delay time of 6.3ns.
Frequency200MHz
PackageLFBGA
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Texas Instruments SN74SSTV32877GKER technical specifications.
General
| Package/Case | LFBGA |
| Clock Edge Trigger Type | Positive Edge |
| Frequency | 200MHz |
| High Level Output Current | -20mA |
| Lead Free | Contains Lead |
| Logic Function | Buffer |
| Low Level Output Current | 20mA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 2.7V |
| Min Supply Voltage | 2.3V |
| Mount | Surface Mount |
| Number of Bits | 26 |
| Number of Elements | 1 |
| Number of Input Lines | 26 |
| Number of Inputs | 26 |
| Number of Output Lines | 26 |
| Number of Outputs | 26 |
| Operating Supply Voltage | 2.5V |
| Output Type | 3-STATE |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Non-Inverting |
| Propagation Delay | 2.8ns |
| RoHS Compliant | No |
| Series | 74SSTV |
| Technology | CMOS |
| Turn-On Delay Time | 6.3ns |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments SN74SSTV32877GKER Datasheet
Download the complete datasheet for Texas Instruments SN74SSTV32877GKER to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

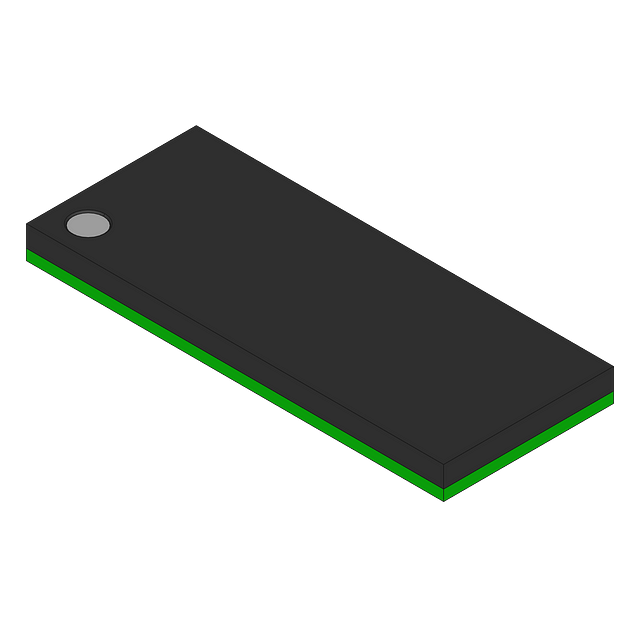

Product Images
