1024 x 18 Synchronous FIFO memory, featuring an 18-bit data bus width and 10ns access time. This unidirectional memory device operates at a maximum frequency of 66.7MHz and is housed in a 64-TQFP surface mount package. It supports a 3.3V operating supply voltage, with a range of 3V to 3.6V, and is RoHS compliant.
Frequency66.7MHz
PackageTQFP
Current35mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74V225-15PAG technical specifications.
General
Access Time
10ns
Access Time-Max
10ns
Bus Directional
Unidirectional
Package/Case
TQFP
Data Bus Width
18b
Density
18Kb
Direction
Unidirectional
Frequency
66.7MHz
Lead Free
Lead Free
Max Frequency
66.7MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
3.6V
Memory Size
18Kb
Min Supply Voltage
3V
Mount
Surface Mount
Number of Circuits
2
Operating Supply Voltage
3.3V
Organization
1KX18
Package Quantity
160
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Series
74V
Supply Current
35mA
Sync/Async
Synchronous
Weight
0.00969oz
Word Size
18b
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74V225-15PAG Datasheet
Download the complete datasheet for Texas Instruments SN74V225-15PAG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

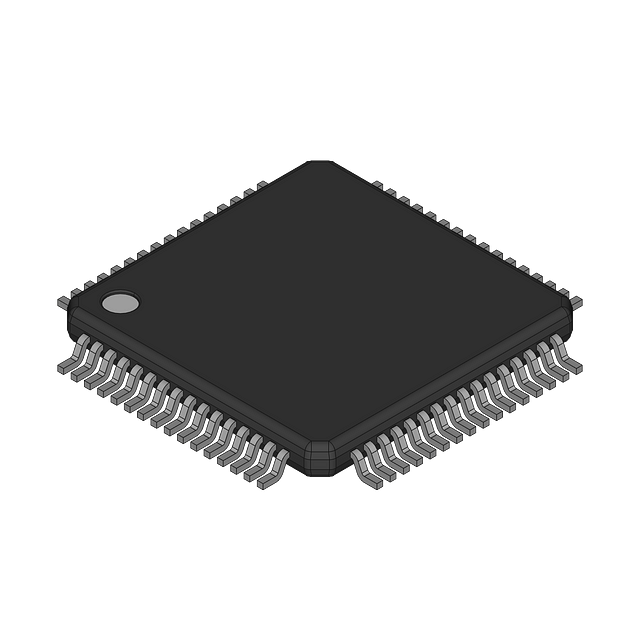

Product Images
