144Kb Synchronous FIFO memory with an 18-bit data bus width, offering 8192 words of storage. Features a maximum operating frequency of 166MHz and a fast 4.5ns access time. Supports First Word Fall Through (FWFT) and retransmit capabilities, with programmable flags for status indication. Packaged in an 80-pin LQFP for surface mounting, operating from a 3.3V supply voltage. This RoHS compliant component is designed for unidirectional data flow.
Frequency166MHz
PackageLQFP
Current35mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74V263-6PZA technical specifications.
General
| Access Time | 4.5ns |
| Access Time-Max | 4.5ns |
| Bus Directional | Unidirectional |
| Package/Case | LQFP |
| Data Bus Width | 18b |
| Density | 144Kb |
| Direction | Unidirectional |
| Frequency | 166MHz |
| FWFT Support | Yes |
| Lead Free | Lead Free |
| Max Frequency | 166MHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 35mA |
| Max Supply Voltage | 3.45V |
| Memory Size | 144Kb |
| Min Supply Voltage | 3.15V |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 90 |
| Packaging | Tray |
| Programmable Flags Support | Yes |
| Radiation Hardening | No |
| Retransmit Capability | Yes |
| RoHS Compliant | Yes |
| Series | 74V |
| Supply Current | 35mA |
| Sync/Async | Synchronous |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN74V263-6PZA Datasheet
Download the complete datasheet for Texas Instruments SN74V263-6PZA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

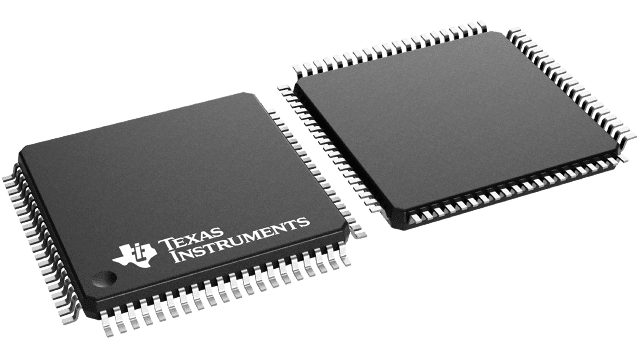

Product Images
