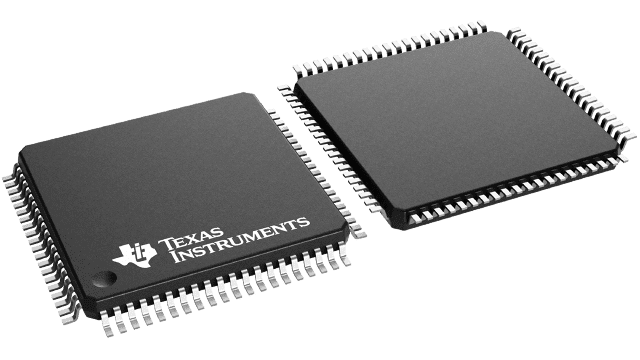

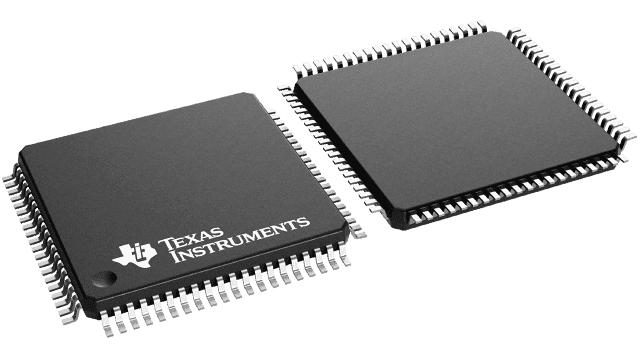

Synchronous FIFO memory IC with 1.125Mb density, featuring a unidirectional data bus with 18-bit width. Offers a maximum operating frequency of 100MHz and a fast access time of 6.5ns. Supports First Word Fall Through (FWFT) and programmable flags, with retransmit capability. Operates at 3.3V with a maximum supply current of 35mA, housed in an 80-pin LQFP surface-mount package.
Frequency100MHz
PackageLQFP
Current35mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74V293-10PZA technical specifications.
General
Access Time
6.5ns
Access Time-Max
6.5ns
Bus Directional
Unidirectional
Package/Case
LQFP
Data Bus Width
18b
Density
1.125Mb
Direction
Unidirectional
Frequency
100MHz
FWFT Support
Yes
Lead Free
Lead Free
Max Frequency
100MHz
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Current
35mA
Max Supply Voltage
3.45V
Memory Size
1.125Mb
Min Supply Voltage
3.15V
Mount
Surface Mount
Number of Circuits
2
Operating Supply Voltage
3.3V
Package Quantity
90
Packaging
Tray
Programmable Flags Support
Yes
Radiation Hardening
No
Retransmit Capability
Yes
RoHS Compliant
Yes
Series
74V
Supply Current
35mA
Sync/Async
Synchronous
Compliance
RoHS
Compliant
