Synchronous FIFO memory IC, offering 1.125Mb density with an 18-bit data bus. Features a 5ns access time and supports a maximum frequency of 133MHz. This unidirectional device includes First Word Fall Through (FWFT) support and retransmit capability. Operates from a 3.15V to 3.45V supply voltage, with a typical 3.3V operating voltage and a maximum supply current of 35mA. Packaged in an 80-pin LQFP for surface mounting, it operates across a wide temperature range of -55°C to 125°C.
Frequency133MHz
PackageLQFP
Current35mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74V293PZAEP technical specifications.
General
Access Time
5ns
Access Time-Max
5ns
Bus Directional
Unidirectional
Package/Case
LQFP
Data Bus Width
18b
Density
1.125Mb
Direction
Unidirectional
Frequency
133MHz
FWFT Support
Yes
Lead Free
Lead Free
Max Frequency
133MHz
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Supply Current
35mA
Max Supply Voltage
3.45V
Memory Size
1.125Mb
Min Supply Voltage
3.15V
Mount
Surface Mount
Number of Circuits
2
Operating Supply Voltage
3.3V
Packaging
Tray
Programmable Flags Support
Yes
Radiation Hardening
No
Retransmit Capability
Yes
RoHS Compliant
Yes
Series
74V
Supply Current
35mA
Sync/Async
Synchronous
Weight
0.022575oz
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74V293PZAEP Datasheet
Download the complete datasheet for Texas Instruments SN74V293PZAEP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

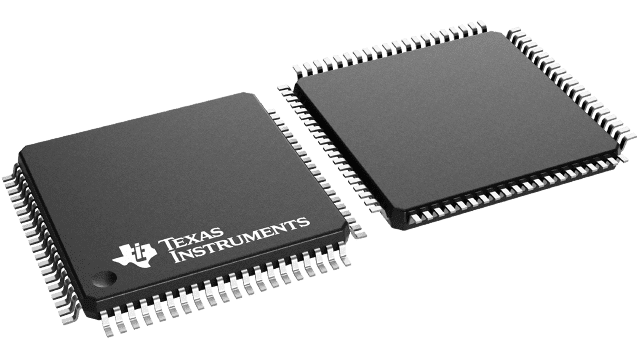

Product Images
