Synchronous FIFO memory IC with 1.125Mb density, organized as 32K x 36 bits. Features a 36-bit data bus width and unidirectional operation. Supports First Word Fall Through (FWFT) and programmable flags, with retransmit capability. Operates at a maximum frequency of 166MHz with a 4.5ns access time. Packaged in a 128-pin LQFP for surface mounting, with an operating voltage of 3.3V.
Frequency166MHz
PackageLQFP
Current40mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN74V3690-6PEU technical specifications.
General
Access Time
4.5ns
Access Time-Max
4.5ns
Bus Directional
Unidirectional
Package/Case
LQFP
Data Bus Width
36b
Density
1.125Mb
Direction
Unidirectional
Frequency
166MHz
FWFT Support
Yes
Lead Free
Contains Lead
Max Frequency
166MHz
Max Operating Temperature
70°C
Max Supply Current
40mA
Max Supply Voltage
3.45V
Memory Size
1.125Mb
Min Operating Temperature
0°C
Min Supply Voltage
3.15V
Mount
Surface Mount
Number of Circuits
2
Operating Supply Voltage
3.3V
Organization
32KX36
Package Quantity
72
Packaging
Tray
Programmable Flags Support
Yes
Radiation Hardening
No
Retransmit Capability
Yes
RoHS Compliant
Yes
Series
74V
Supply Current
40mA
Sync/Async
Synchronous
Word Size
36b
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN74V3690-6PEU Datasheet
Download the complete datasheet for Texas Instruments SN74V3690-6PEU to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

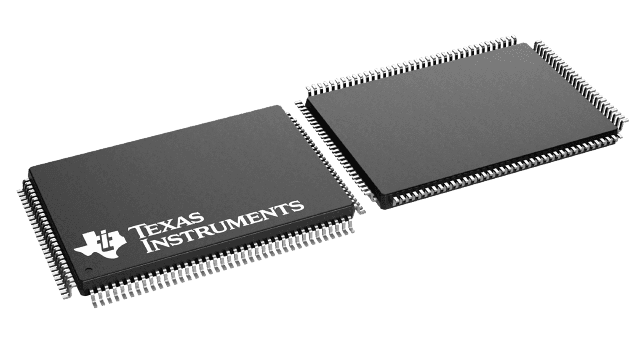

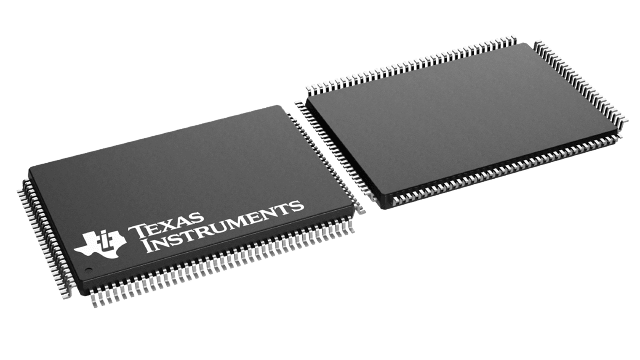

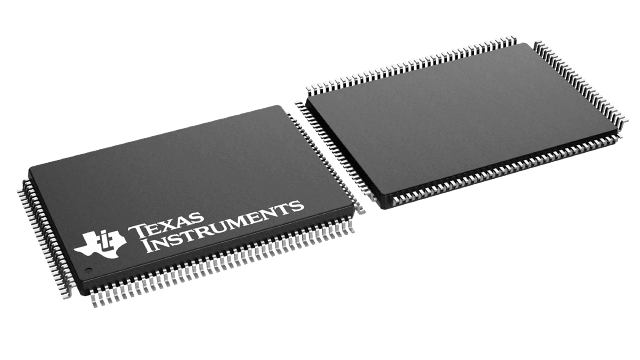

Product Images
