PackageSOP
Current6.1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments SN751701PSR technical specifications.
General
| Package/Case | SOP |
| Data Rate | 300Kbps |
| Lead Free | Lead Free |
| Logic Function | Transceiver |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Number of Drivers | 1 |
| Number of I/Os | 4 |
| Number of Receivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Propagation Delay | 0.48us |
| RoHS Compliant | Yes |
| Simplex/Duplex | Half Duplex |
| Supply Current | 6.1mA |
| Weight | 0.004325oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN751701PSR Datasheet
Download the complete datasheet for Texas Instruments SN751701PSR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

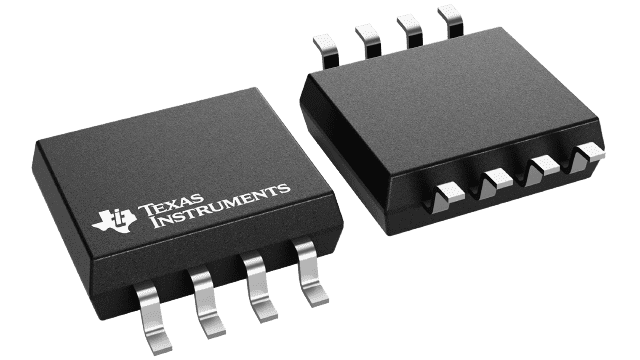

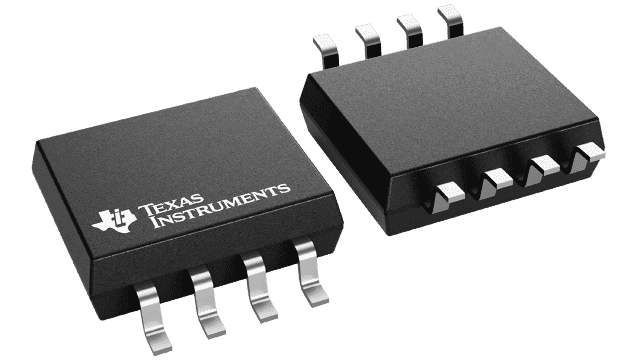

Product Images
