Quad receiver bus transceiver supporting RS-422, RS-423, and RS-485 standards. Features a 10Mbps data rate and operates with a 5V supply voltage (4.75V to 5.25V). This half-duplex interface IC offers 4 receivers and is housed in a 16-pin SOIC package with dimensions of 9.9mm length, 3.91mm width, and 1.58mm height. RoHS compliant and lead-free, it operates within a temperature range of 0°C to 70°C.
PackageD
Current70mA
Current Rating50A
Quick Jump:
Technical Specifications
Texas Instruments SN75175D technical specifications.
General
| Package/Case | D |
| Current Rating | 50A |
| Data Rate | 10Mbps |
| ESD Protection | No |
| Height | 1.58mm |
| Lead Free | Lead Free |
| Length | 9.9mm |
| Logic Function | Receiver |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 70mA |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Number of Receivers | 4 |
| Operating Supply Current | 70mA |
| Operating Supply Voltage | 5V |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Simplex/Duplex | Half Duplex |
| Supply Current | 70mA |
| Weight | 0.004998oz |
| Width | 3.91mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN75175D Datasheet
Download the complete datasheet for Texas Instruments SN75175D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

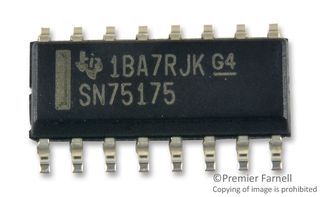

Product Images
