Full duplex bus transceiver for RS-422/RS-485 interfaces. Features one transmitter and one receiver, supporting data rates up to 10Mbps. Operates with a supply voltage of 5V (4.75V to 5.25V) and has an operating supply current of 70mA. Packaged in an 8-pin SOIC (D) with dimensions of 4.9mm length, 3.91mm width, and 1.58mm height. RoHS compliant and lead-free, with an operating temperature range of 0°C to 70°C.
PackageD
Current70mA
Quick Jump:
Technical Specifications
Texas Instruments SN75179BD technical specifications.
General
| Package/Case | D |
| Data Rate | 10Mbps |
| Height | 1.58mm |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Logic Function | Transceiver, Receiver |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Number of Drivers | 1 |
| Number of Receivers | 1 |
| Number of Transceivers | 1 |
| Number of Transmitters | 1 |
| Operating Supply Current | 70mA |
| Operating Supply Voltage | 5V |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 70mA |
| Weight | 0.002561oz |
| Width | 3.91mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN75179BD Datasheet
Download the complete datasheet for Texas Instruments SN75179BD to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

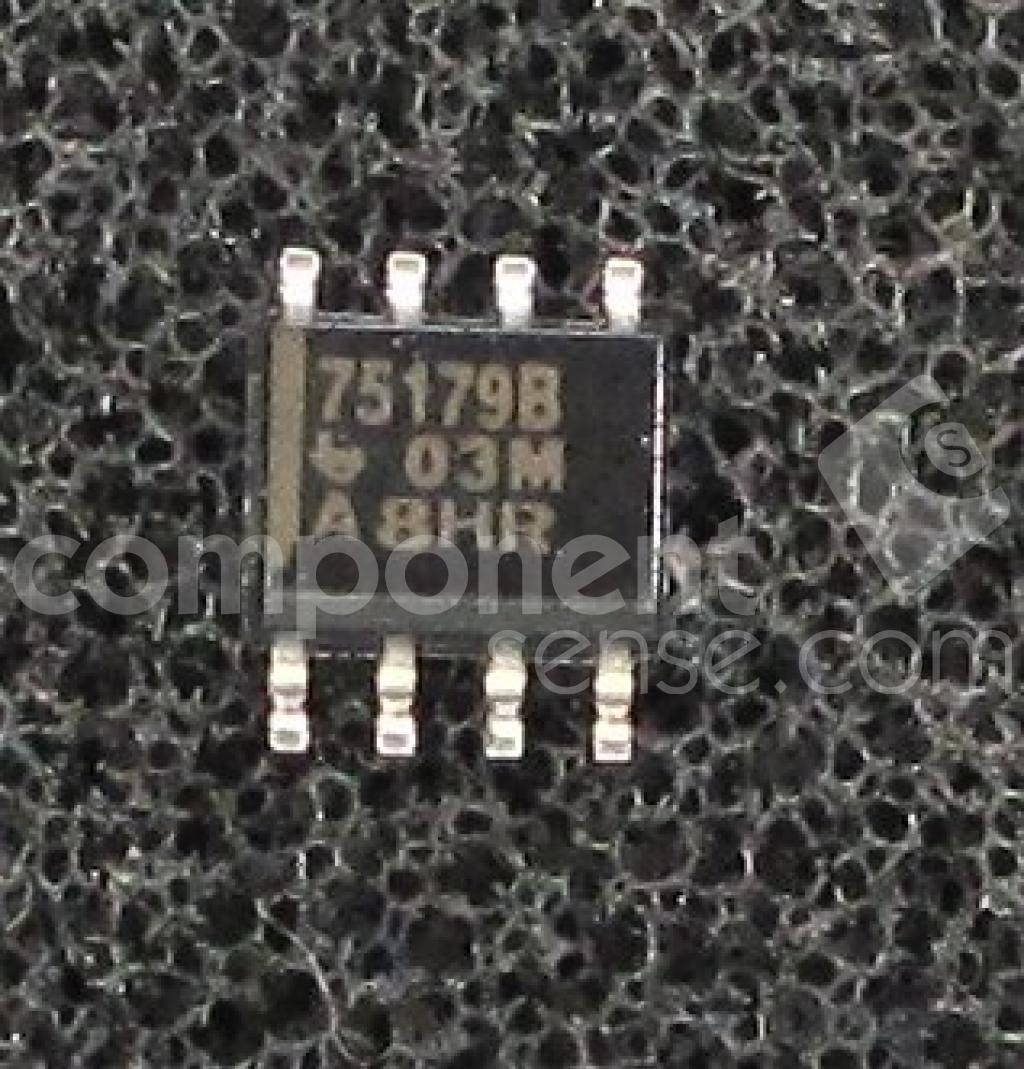

Product Images
