PackageN
Current26mA
Current Rating20A
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments SN75189N technical specifications.
General
Package/Case
N
Current Rating
20A
Data Rate
1000Kbps
Height
4.57mm
Lead Free
Lead Free
Length
19.3mm
Logic Function
Receiver
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Receivers
4
Operating Supply Voltage
5V
Package Quantity
25
Packaging
Rail/Tube
Power Dissipation
1.15W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
26mA
Weight
0.032734oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN75189N Datasheet
Download the complete datasheet for Texas Instruments SN75189N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

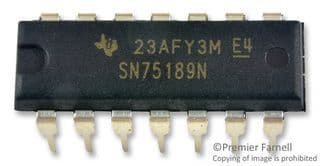

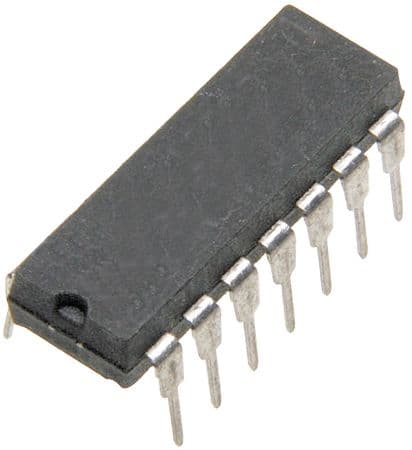

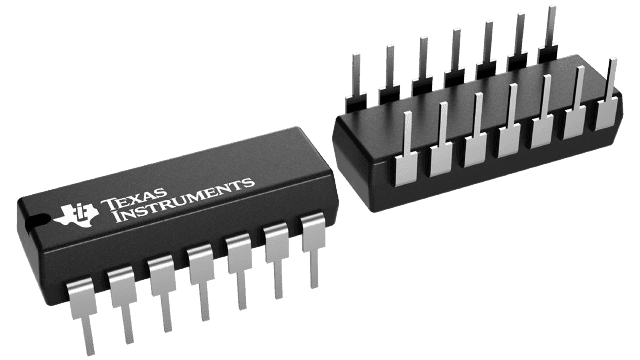

Product Images
