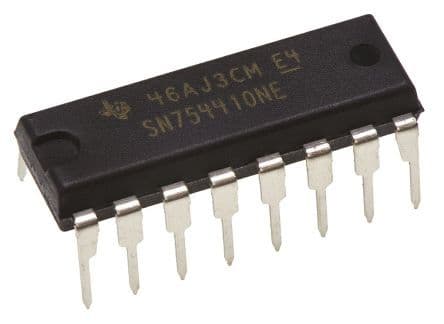

Quadruple Half-H Driver IC, featuring four independent drivers with a maximum output current of 1.1A per channel and 2A peak. Operates with supply voltages from 4.5V to 36V, offering an output voltage up to 36V. Encased in a 16-PDIP through-hole package, this bipolar technology component supports a wide operating temperature range of -40°C to 85°C. RoHS compliant and lead-free, it provides a robust interface solution for various electronic applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments SN754410NE datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | PDIP |
| Height | 4.57mm |
| Interface | Logic |
| Lead Free | Lead Free |
| Length | 19.8mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Power Dissipation | 2.075W |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Circuits | 4 |
| Number of Drivers | 4 |
| Number of Outputs | 4 |
| Output Current | 1.1A |
| Output Current per Channel | 1A |
| Output Voltage | 36V |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Technology | BIPOLAR |
| Weight | 0.03357oz |
| Width | 6.35mm |
| RoHS | Compliant |
