Dual peripheral driver IC featuring 2 drivers and 2 outputs, capable of driving loads up to 30V with 400mA output current. Operates within a 4.75V to 5.25V supply voltage range, with a maximum power dissipation of 1W. This through-hole mounted component comes in an 8-pin PDIP package, offering a propagation delay of 25ns and turn-on/turn-off times of 8ns and 12ns respectively. RoHS compliant and lead-free, with a maximum operating temperature of 70°C.
PackagePDIP
Current65mA
MountingThrough Hole
Power1W
Quick Jump:
Technical Specifications
Texas Instruments SN75451BP technical specifications.
General
Package/Case
PDIP
Height
4.57mm
Lead Free
Lead Free
Length
9.81mm
Max Input Voltage
5.5V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Power Dissipation
1W
Max Supply Current
65mA
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
Through Hole
Number of Drivers
2
Number of Outputs
2
Output Current
400mA
Output Voltage
30V
Package Quantity
50
Packaging
Rail/Tube
Power Dissipation
1W
Propagation Delay
25ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
65mA
Turn-Off Delay Time
12ns
Turn-On Delay Time
8ns
Weight
0.015535oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments SN75451BP Datasheet
Download the complete datasheet for Texas Instruments SN75451BP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

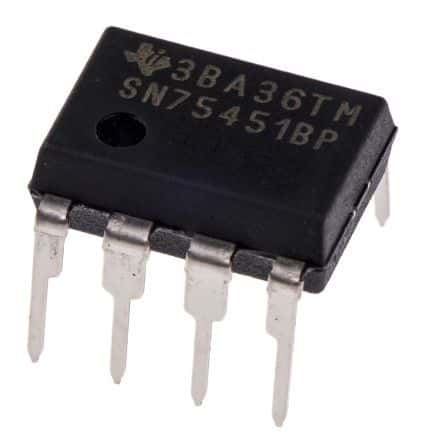

Product Images
