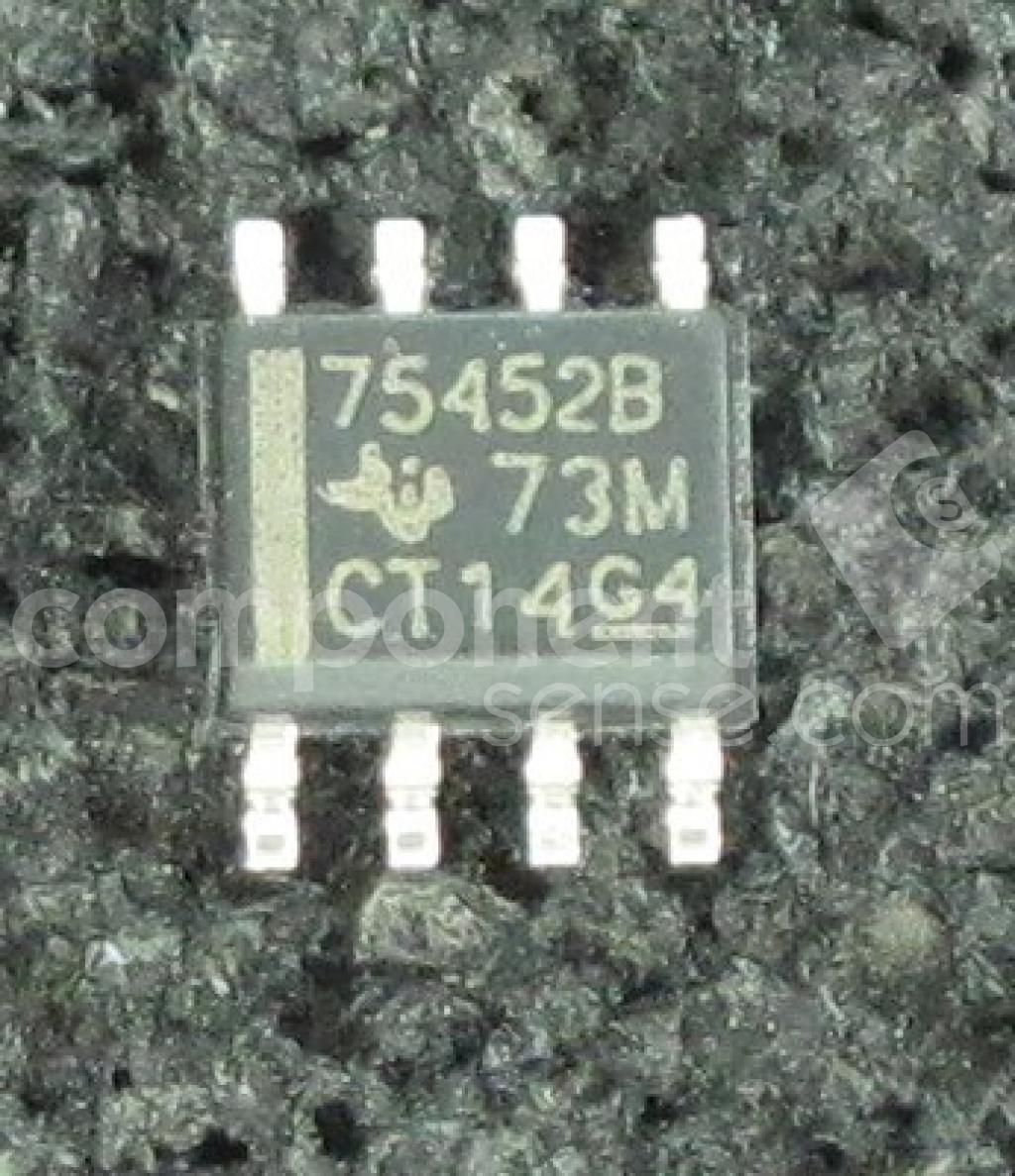

Dual peripheral driver IC, surface mountable in an 8-pin SOIC package. Features two independent drivers with a maximum output current of 500mA and an output voltage up to 30V. Operates with a supply voltage range of 4.75V to 5.25V, offering a maximum power dissipation of 725mW. Includes fast switching times with turn-on delay of 8ns and turn-off delay of 12ns, and a propagation delay of 35ns. This RoHS compliant component is lead-free and designed for reliable interface applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments SN75452BD datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments SN75452BD technical specifications.
| Package/Case | SOIC |
| Channel Type | Independent |
| Height | 1.58mm |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 500mA |
| Max Power Dissipation | 725mW |
| Max Supply Current | 71mA |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of Drivers | 2 |
| Number of Outputs | 2 |
| Output Current | 400mA |
| Output Voltage | 30V |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Power Dissipation | 725mW |
| Propagation Delay | 35ns |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 71mA |
| Turn-Off Delay Time | 12ns |
| Turn-On Delay Time | 8ns |
| Weight | 0.002561oz |
| Width | 3.91mm |
| RoHS | Compliant |
