9-channel differential bus transceiver, surface mount, half duplex, designed for RS-485 interfaces. Features a 5V operating supply voltage with a range of 4.75V to 5.25V, supporting a 20Mbps data rate. This integrated circuit offers 9 drivers and 9 receivers with a maximum output current of 260mA and a propagation delay of 13.5ns. Packaged in a 56-TSSOP, it operates between 0°C and 70°C and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments SN75976A1DGG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™

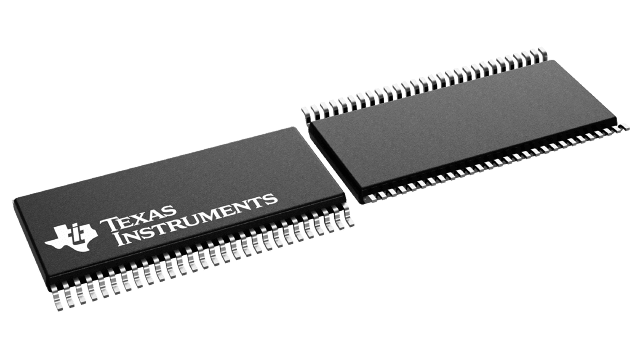

Texas Instruments SN75976A1DGG technical specifications.
| Package/Case | TSSOP |
| Data Rate | 20Mbps |
| Interface | RS-485 |
| Lead Free | Lead Free |
| Logic Function | Transceiver |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Power Dissipation | 2.5W |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Mount | Surface Mount |
| Number of Drivers | 9 |
| Number of Receivers | 9 |
| Number of Transmitters | 9 |
| Operating Supply Voltage | 5V |
| Output Current | 260mA |
| Output Voltage | 1.8V |
| Package Quantity | 35 |
| Packaging | Rail/Tube |
| Propagation Delay | 13.5ns |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Simplex/Duplex | Half Duplex |
| Supply Current | 60mA |
| Termination | SMD/SMT |
| Weight | 0.008917oz |
| RoHS | Compliant |
