SN75ALS1177NSR
Dual Differential Transceiver, 2 Drivers/2 Receivers, 10Mbps, 5V, SOP
Dual differential drivers and receivers, this transceiver IC operates at up to 10Mbps with a 5V supply voltage (4.75V to 5.25V). Featuring two drivers and two receivers, it supports full-duplex communication. Packaged in a 16-SOIC format, it operates within a temperature range of 0°C to 70°C and is RoHS compliant.
PackageSOP
Current50mA
Quick Jump:
Technical Specifications
Texas Instruments SN75ALS1177NSR technical specifications.
General
| Package/Case | SOP |
| Data Rate | 10Mbps |
| Lead Free | Lead Free |
| Logic Function | Transceiver, Receiver |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4.75V |
| Number of Drivers | 2 |
| Number of Receivers | 2 |
| Number of Transceivers | 1 |
| Number of Transmitters | 2 |
| Operating Supply Voltage | 5V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Receiver Hysteresis | 50mV |
| RoHS Compliant | Yes |
| Simplex/Duplex | Full Duplex |
| Supply Current | 50mA |
| Weight | 0.007079oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments SN75ALS1177NSR Datasheet
Download the complete datasheet for Texas Instruments SN75ALS1177NSR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

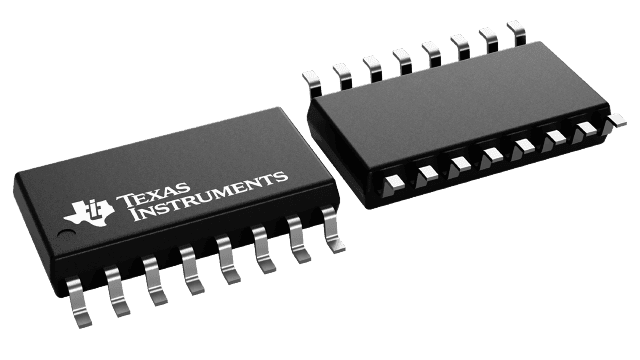

Product Images
